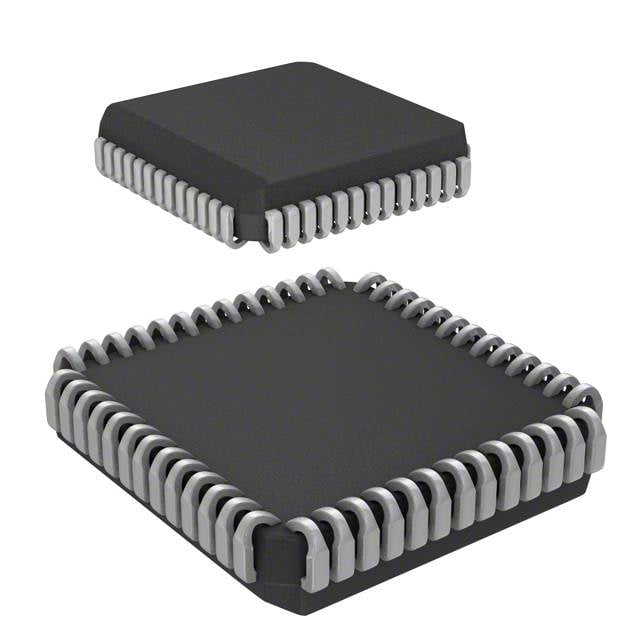

DS87C530-QNL

Manufacturer :

Analog Devices, Inc.

Product Category :

Microcontrollers

RAM Size :

1K x 8

Number of UART Channels :

2

Voltage - Supply (Vcc/Vdd) :

4.5V~5.5V

Qualification Status :

Not Qualified

Number of I/O :

32

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

PWM Channels :

No

DAC Channels :

No

ECCN Code :

EAR99

Peripherals :

Power-Fail Reset, PWM, WDT

Core Size :

8-Bit

ROM (words) :

16384

Supply Voltage-Max (Vsup) :

5.5V

uPs/uCs/Peripheral ICs Type :

MICROCONTROLLER

Program Memory Type :

OTP

RoHS Status :

ROHS3 Compliant

Number of Pins :

52

Terminal Finish :

Matte Tin (Sn)

Factory Lead Time :

6 Weeks

Surface Mount :

yes

Published :

2009

Base Part Number :

DS87C530

Oscillator Type :

External

Height Seated (Max) :

4.57mm

Series :

87C

Operating Temperature :

-40°C~85°C TA

Lead Free :

Lead Free

Mounting Type :

Surface Mount

Terminal Position :

QUAD

Supply Voltage :

5V

Packaging :

Tube

Terminal Form :

J BEND

Pbfree Code :

yes

DMA Channels :

No

Speed :

33MHz

Bit Size :

8

Power Supplies :

5V

Number of Terminations :

52

External Data Bus Width :

8

Core Processor :

8051

Connectivity :

EBI/EMI, SIO, UART/USART

JESD-609 Code :

e3

Has ADC :

No

Moisture Sensitivity Level (MSL) :

4 (72 Hours)

Clock Frequency :

33MHz

Program Memory Size :

16KB 16K x 8

Supply Voltage-Min (Vsup) :

4.5V

Address Bus Width :

16

Package / Case :

52-LCC (J-Lead)

Peak Reflow Temperature (Cel) :

260

Pin Count :

52
