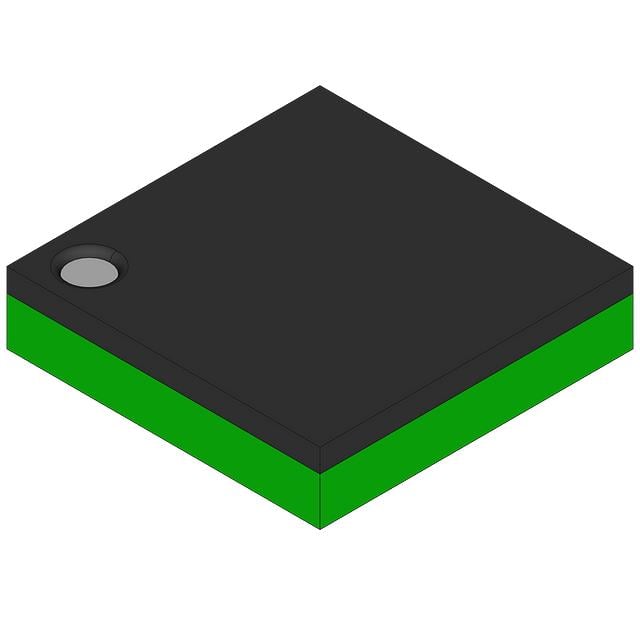

DS1859B-050/TR
Or copy the link below:
- Mfr.Part #
- DS1859B-050/TR
- Manufacturer
- Analog Devices, Inc.
- Package / Case
- 16-LBGA, CSPBGA
- Datasheet
- Download
- Description
- DUAL, TEMP-CONTROLLED RESISTOR
- Stock
- 1,476
- In Stock ：
- 1,476
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Analog Devices, Inc.
- Product Category :
- Temperature Sensors - Analog and Digital Output
- Base Part Number :
- DS1859
- Max Supply Voltage :
- 5.5V
- Number of Pins :
- 16
- Published :
- 2006
- Radiation Hardening :
- No
- Resistance :
- 50kOhm
- Max Operating Temperature :
- 95°C
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Supply Voltage :
- 5V
- Mounting Type :
- Surface Mount
- Factory Lead Time :
- 6 Weeks
- Supplier Device Package :
- 16-CSBGA (4x4)
- Packaging :
- Tape and Reel (TR)
- Temperature Coefficient :
- 50 ppm/°C
- Number of Circuits :
- 2
- Temperature Coefficient (Typ) :
- 50ppm/°C
- Package / Case :
- 16-LBGA, CSPBGA
- Interface :
- I2C
- Number of Taps :
- 256
- Nominal Supply Current :
- 2mA
- Tolerance :
- ±20%
- Number of Positions :
- 256
- Taper :
- Linear
- Min Supply Voltage :
- 2.85V
- Feature :
- Selectable Address, Temperature Sensor
- Memory Type :
- Non-Volatile
- Min Operating Temperature :
- -40°C
- Voltage - Supply :
- 2.85V~5.5V
- Configuration :
- Rheostat
- Operating Temperature :
- -40°C~95°C
- Datasheets
- DS1859B-050/TR
DS1859 Digital Potentiometers I2C 256 Positions Min 2.85V V Max 5.5V V
DS1859B-050+T&R/B Overview
It is contained in 16-LBGA, CSPBGA pacakge.This pentometer begins to be stored by Non-Volatile.There are embedded 2 circuits in this digital potentiometer.It is accessible in the Tape & Reel (TR) package to secure the digital analogic.There are 256 taps to protect the overcurrent of this pentometer.Pentometer consists of 256 positions.It is recommended to mount in the way of Surface Mount.The potentionmeter can supply 2.85V~5.5V voltage.This digital potentiometers operate temperature at the range of -40°C~95°C.50kOhm can limit the flow.Pentometer is a member of DS1859 family.This potentiameter gets 16 pins on it.Selectable Address, Temperature Sensor can be found when using this digital variable resistor.The potentiometer conducts in a supply voltage of 5V.The maximum 95°C ensures that the digital resistor runs stablily.To maintain reliability, it operates at a minimum working temperature of -40°C.It can handle a maximum supply voltage of 5.5V.It can work with the minimum supply voltage of 2.85V.
DS1859B-050+T&R/B Features
Available in 16-LBGA, CSPBGA package
2 Circuits
Mounting Type: Surface Mount
Operate temperature at the range of -40°C~95°C
16 pins
Operate supply voltage at the range of 5V
DS1859B-050+T&R/B Applications
There are a lot of Maxim Integrated
DS1859B-050+T&R/B Digital Potentiometers applications.
- Testing equipment
- PC
- Cell phone
- Household appliances
- Modern office equipment
- Industrial control
- Medical equipment
- Refrigerator
- Programmable computer
- Power supply
