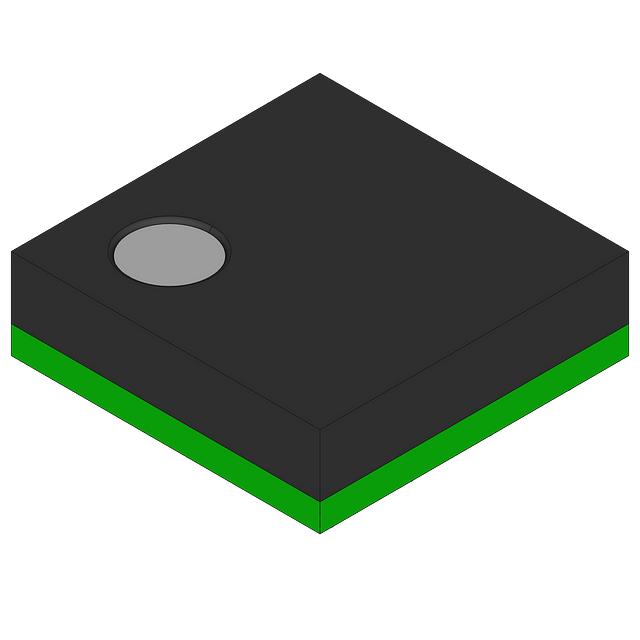

DS1845B-020

Manufacturer :

Analog Devices, Inc.

Product Category :

Digital Potentiometers

Number of Positions :

256

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Resistance Tolerance-Max :

20%

Power Supplies :

3/5V

Height Seated (Max) :

1.5mm

Time@Peak Reflow Temperature-Max (s) :

20

Supply Voltage :

3V

Resistor Terminal Voltage-Min :

-0.5V

Control Interface :

2-Wire Serial

Terminal Pitch :

1mm

Peak Reflow Temperature (Cel) :

240

Radiation Hardening :

No

Terminal Form :

Ball

Temperature Grade :

Industrial

JESD-609 Code :

e1

Number of Pins :

16

Resistance Law :

Linear

RoHS Status :

RoHS Compliant

Pbfree Code :

No

Temperature Coefficient :

30 ppm/°C

Min Operating Temperature :

-40°C

Number of Terminations :

16

Number of Functions :

2

Width :

4mm

Resistor Terminal Voltage-Max :

3.5V

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Total Resistance :

20000Ohm

Pin Count :

16

Composition :

Potentiometer

Terminal Position :

BOTTOM

Max Operating Temperature :

85°C

Surface Mount :

yes

Length :

4mm

Memory Type :

Non-Volatile

ECCN Code :

EAR99

HTS Code :

8542.39.00.01
