DS1000M-35

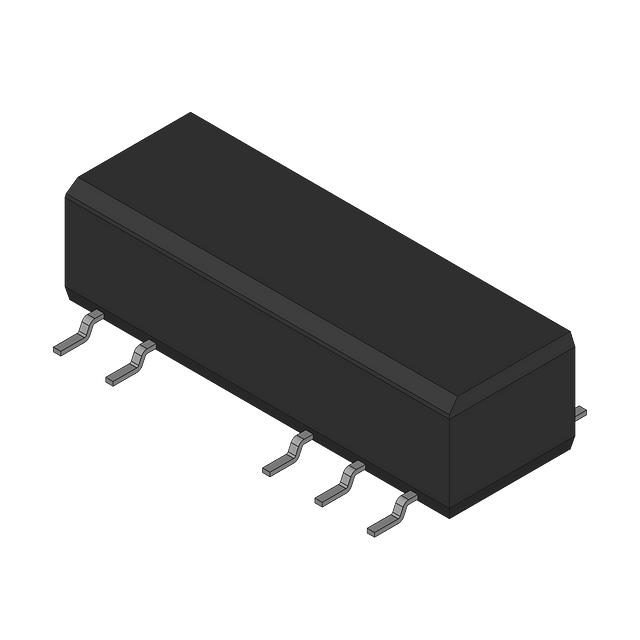

Delay Lines Analog Devices, Inc. DS1000M-35 Overview

The Delay Lines Analog Devices, Inc. DS1000M-35 is a sophisticated silicon delay line that delivers precise, controlled delays for various applications. Manufactured by Analog Devices, Inc., this component is engineered to meet stringent performance requirements, ensuring reliable operation and integration into digital circuits. With its compact form and easy implementation, the DS1000M-35 enhances system performance by providing delay solutions in signal processing tasks, crucial for timing adjustments and clock synchronization in complex electronic systems.

DS1000M-35 Features

The DS1000M-35 boasts a series of features that make it an essential part of any electronic system requiring precise delay lines. It includes five programmable taps that allow for adjustable delay settings, making it highly versatile for different configurations. Its low power consumption and high durability ensure it operates efficiently over a wide range of temperatures and environmental conditions. The component’s robust design also guarantees minimal signal degradation, maintaining signal integrity even under strenuous conditions.

DS1000M-35 Applications

• Digital Signal Processing: The DS1000M-35 is used to manage timing errors and synchronize signals, ensuring coherent data flow and processing efficiency.
• Network Synchronization: Essential in telecommunications, this delay line helps align data packets arriving at different times, improving network reliability and speed.
• Audio Equipment: In audio processing units, the DS1000M-35 adjusts timing in multi-track recordings, allowing precise overlay and mixing of tracks.
• Video Broadcasting: Utilized in video broadcast systems to delay video signals for synchronization purposes, ensuring seamless broadcast without transmission errors.
• Embedded Systems: Supports real-time operations by delaying signals to align with processing speeds and operational timing in embedded controllers.
