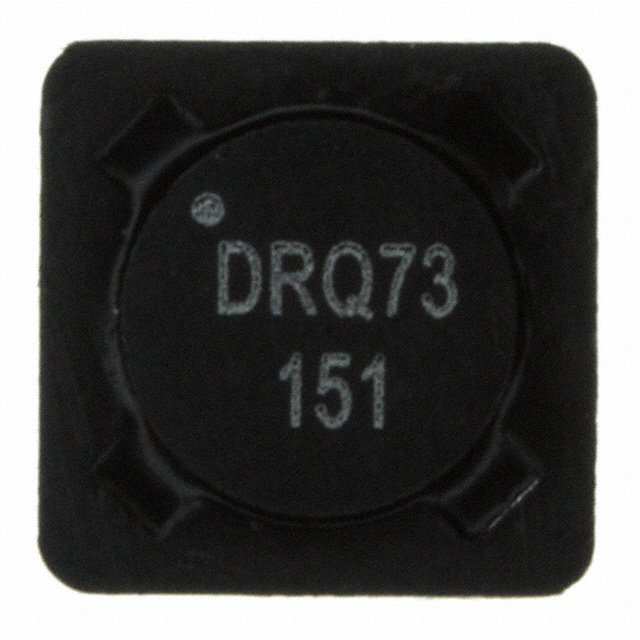

DRQ73-151-R
Or copy the link below:
- Mfr.Part #
- DRQ73-151-R
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- Nonstandard
- Datasheet
- Download
- Description
- INDUCT ARRAY 2 COIL 150.9UH SMD
- Stock
- 1,350
- In Stock ：
- 1,350
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Arrays, Signal Transformers
- RoHS Status :
- ROHS3 Compliant
- Inductance - Series :
- 603.6 μH
- Mounting Type :
- Surface Mount
- Size / Dimension :
- 0.299Lx0.299W 7.60mmx7.60mm
- Operating Temperature :
- -40°C~125°C
- Max DC Current :
- 650mA
- Inductance :
- 150 µH
- Current Rating - Series :
- 289mA
- Current Rating - Parallel :
- 580mA
- Termination :
- SMD/SMT
- Weight :
- 907.18474mg
- DC Resistance (DCR) - Series :
- 3.41Ohm
- DC Resistance (DCR) - Parallel :
- 851mOhm
- Series :
- DRQ
- Inductance - Connected In Series :
- 603.6μH
- Current Saturation - Series :
- 320mA
- Length :
- 7.5946mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Min Operating Temperature :
- -40°C
- Number of Pins :
- 4
- Inductance - Connected In Parallel :
- 150.9μH
- Test Frequency :
- 100kHz
- Self Resonant Frequency :
- 100kHz
- Current Saturation - Parallel :
- 650mA
- Current :
- 289mA
- Current Rating :
- 289mA
- Max Operating Temperature :
- 125°C
- Resistance :
- 851mOhm
- Depth :
- 7.6mm
- Shielding :
- Shielded
- Packaging :
- Tape and Reel (TR)
- Mount :
- Surface Mount
- Factory Lead Time :
- 14 Weeks
- Height :
- 0.140 3.55mm
- Core Material :
- Ferrite
- Inductance - Parallel :
- 150.9 μH
- Number of Coils :
- 2
- Tolerance :
- ±20%
- Width :
- 7.5946mm
- Package / Case :
- Nonstandard
- Lead Free :
- Lead Free
- Published :
- 2014
- Datasheets
- DRQ73-151-R
