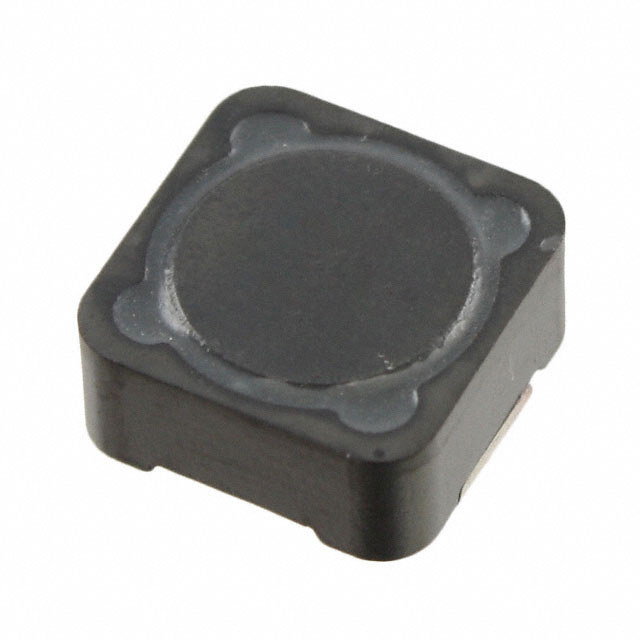

DR125-221-R

Manufacturer :

Eaton-Electronics Division

Product Category :

Fixed Inductors

Test Frequency :

100kHz

Width :

12.5mm

Military Standard :

Not

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Pins :

2

Composition :

Wirewound

DC Current :

1.19A

REACH SVHC :

No SVHC

Package / Case :

Nonstandard

Current Rating :

1.19A

Current - Saturation :

1.51A

Tolerance :

±20%

Shielding :

Shielded

Operating Temperature :

-40°C~125°C

Material - Core :

Ferrite

Type :

Wirewound

Min Operating Temperature :

-40°C

Length :

12.5mm

Packaging :

Tape and Reel (TR)

Mounting Type :

Surface Mount

Height :

6mm

Inductance Tolerance :

20%

Weight :

1.360777g

Self Resonant Frequency :

100kHz

Factory Lead Time :

9 Weeks

Current Rating (Amps) :

1.19A

Mount :

Surface Mount

RMS Current (Irms) :

1.19A

Max Operating Temperature :

125°C

RoHS Status :

ROHS3 Compliant

Lead Free :

Lead Free

Series :

DR

Inductance :

220μH

DC Resistance (DCR) :

384mOhm

Depth :

12.5mm

Size / Dimension :

0.492Lx0.492W 12.50mmx12.50mm

Published :

2014

Inductance Frequency - Test :

100kHz

Height Seated (Max) :

0.236 6.00mm

Max DC Current :

1.51A

Termination :

SMD/SMT
