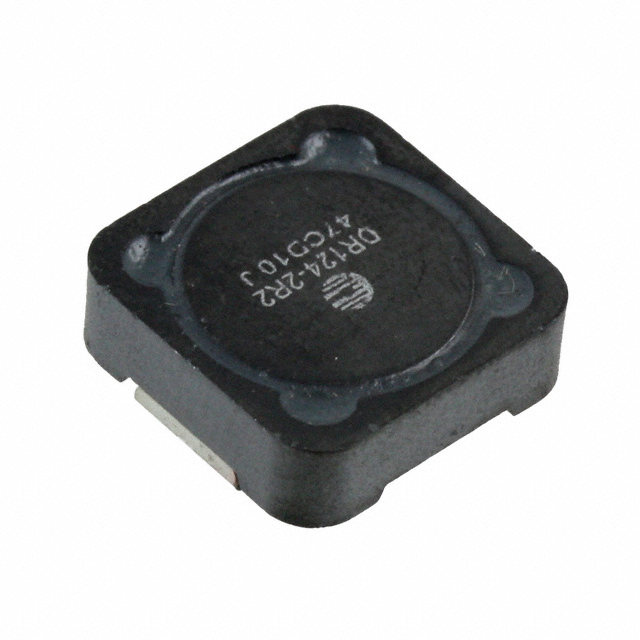

DR124-2R2-R

Manufacturer :

Eaton-Electronics Division

Product Category :

Fixed Inductors

Package / Case :

Nonstandard

REACH SVHC :

No SVHC

DC Resistance (DCR) :

7.1mOhm Max

Test Frequency :

100kHz

Height Seated (Max) :

0.177 4.50mm

Termination :

SMD/SMT

Self Resonant Frequency :

1MHz

Composition :

Wirewound

Series :

DR124

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Tape and Reel (TR)

Height :

4.5mm

Inductance :

2.2μH

Tolerance :

±20%

Max DC Current :

11.45A

Operating Temperature :

-40°C~125°C

Depth :

12.3mm

Mount :

Surface Mount

Length :

12.3mm

Published :

2011

Weight :

3.175147g

Current Rating :

9.1A

Current Rating (Amps) :

9.1A

RoHS Status :

ROHS3 Compliant

Width :

12.4968mm

RMS Current (Irms) :

9.1A

Factory Lead Time :

10 Weeks

Min Operating Temperature :

-40°C

Inductance Frequency - Test :

100kHz

Type :

Wirewound

Size / Dimension :

0.492Lx0.492W 12.50mmx12.50mm

Radiation Hardening :

No

DC Current :

9.1A

Mounting Type :

Surface Mount

Current - Saturation :

11.45A

Lead Free :

Lead Free

Military Standard :

Not

Max Operating Temperature :

125°C

Inductance Tolerance :

20%

Number of Pins :

2

Material - Core :

Ferrite

Shielding :

Shielded
