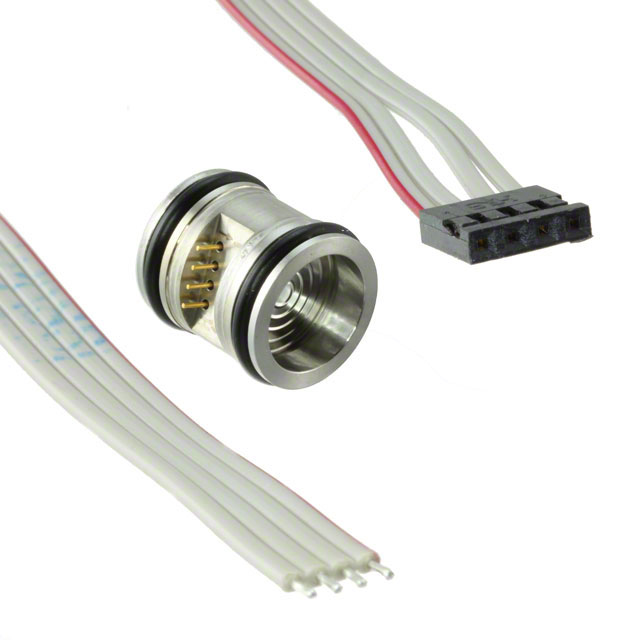

DP86-001D
Or copy the link below:
- Mfr.Part #
- DP86-001D
- Manufacturer
- TE Connectivity Measurement Specialties
- Package / Case
- Module
- Datasheet
- Download
- Description
- SENSOR PRESSURE
- Stock
- 20
- In Stock ：
- 20
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Measurement Specialties
- Product Category :
- Pressure Sensors, Transducers - Industrial
- Published :
- 2010
- Operating Temperature :
- -40°C~85°C
- Series :
- DP86
- Termination Style :
- Wire Leads
- Pressure Type :
- Differential
- Output Type :
- Wheatstone Bridge
- Accuracy :
- ±0.3%
- RoHS Status :
- RoHS Compliant
- Package / Case :
- Module
- Voltage - Supply :
- 5V~12V
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Operating Pressure :
- 1PSI (6.89kPa)
- Factory Lead Time :
- 10 Weeks
- Port Style :
- No Port
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Applications :
- Industrial Automation
- Maximum Pressure :
- 10PSI (68.95kPa)
- Output :
- 45 mV ~ 75 mV (5V)
- Datasheets
- DP86-001D
DP86 Series Differential Pressure Sensor Wheatstone Bridge -40°C~85°C 1PSI (6.89kPa) No Port ±0.3% 45 mV ~ 75 mV (5V) 5V~12V
DP86-001D Overview
Transducers in Module are included for convenience. For reliable performance, set the temperature of the transducers to -40°C~85°C. Supply voltages of 5V~12V are suitable for the transducers.
DP86-001D Features
Moisture Sensitivity Level: 1 (Unlimited)
Package / Case: Module
Operating Temperature: -40°C~85°C
DP86 series
Operating Pressure: 1PSI (6.89kPa)
DP86-001D Applications
There are a lot of TE Connectivity Measurement Specialties
DP86-001D Transducers applications.
- Mobile Phones
- Virtual Reality and Gaming Equipment
- Indoor/Outdoor Navigation (dead-reckoning, floor/elevator/step detection)
- Vertical velocity monitoring
- Leisure, Sports, and Fitness Activity Identification
- Weather Forecasting
- Hydrogen Storage
- Refrigerant pressure monitoring in HVAC/R systems
- Dry air system pressure, process controls and automation
- Dry air system monitoring
