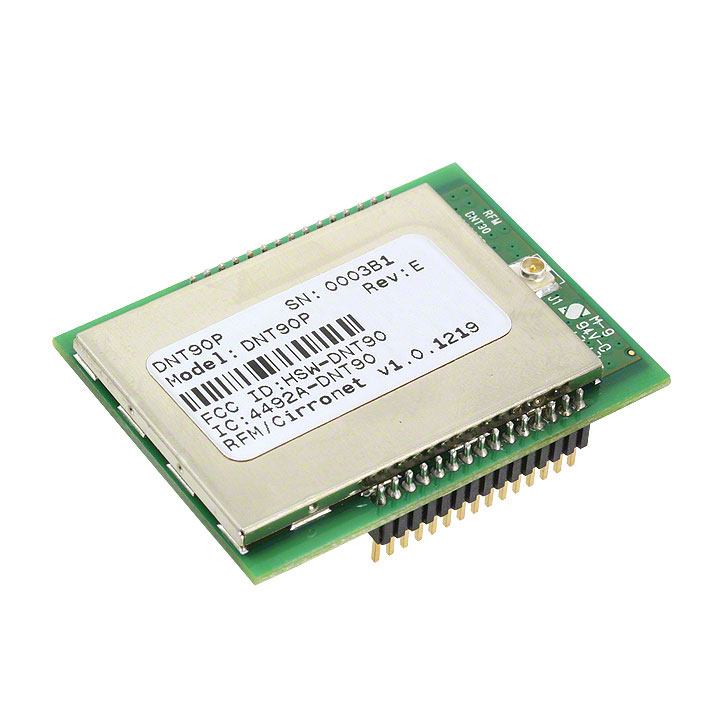

DNT90P
Or copy the link below:
- Mfr.Part #
- DNT90P
- Manufacturer
- Murata Electronics
- Package / Case
- Module
- Datasheet
- Download
- Description
- RX TXRX MOD ISM < 1GHZ U.FL TH
- Stock
- 8,123
- In Stock ：
- 8,123
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Murata Electronics
- Product Category :
- RF Transceiver Modules and Modems
- Max Output Current :
- 170mA
- Operating Supply Voltage :
- 5.5V
- Interface :
- SPI, Serial, UART
- Modulation :
- FHSS, FSK
- Package / Case :
- Module
- Operating Temperature :
- -40°C~85°C
- RoHS Status :
- ROHS3 Compliant
- Sensitivity :
- -100dBm
- Frequency :
- 900MHz
- Voltage - Supply :
- 3.3V~5.5V
- Mounting Type :
- Through Hole
- Utilized IC / Part :
- TRC103
- Packaging :
- Bulk
- Current - Transmitting :
- 170mA Max
- Number of Pins :
- 30
- Antenna Type :
- Antenna Not Included, U.FL
- RF Family/Standard :
- General ISM < 1GHz
- Current - Receiving :
- 25mA~110mA
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Through Hole
- Power - Output :
- 22dBm
- Min Operating Temperature :
- -40°C
- Sensitivity (dBm) :
- -100 dBm
- Data Rate :
- 500Kbps
- Max Operating Temperature :
- 85°C
- Power Rating :
- 158mW
- Lead Free :
- Lead Free
- Serial Interfaces :
- SPI, UART
- Datasheets
- DNT90P
900MHz General ISM < 1GHz -40°C~85°C 3.3V~5.5V SPI, UART Bulk Antenna Not Included, U.FL 500kbps 22dBm -100dBm Module
DNT90P Overview
As a RF Transceiver' mounting method, Through Hole is used.Using the Bulk package, this RF Transceiver module optimizes the performance of the RF Transceiver module 12v.In order for it to operate properly, Transceiver's operating temperature should be at -40°C~85°C.In order to operate high power RF Transceiver, 30 pins are required.RF Transceivers that can supply 3.3V~5.5V volts are available.A 900MHz frequency is used by the RF Transceiver Module.As a result of its Through Hole mounting, this Transceiver is widely used in a wide variety of applications.
DNT90P Features
Through Hole
Bulk package
30 pins
3.3V~5.5V volts
DNT90P Applications
There are a lot of Murata Electronics
DNT90P RF Transceiver Modules applications.
- Switch
- Power management
- Internet of Things (IoT)
- Secure Payment
- Home and Security
- Health and Fitness
- Industrial and Data Logger
- LED Lighting
- Utility and Smart Energy
- Thermostats
