DML-16-A-V-T-A

Share

Or copy the link below:

Mfr.Part #
DML-16-A-V-T-A
Manufacturer
Adam Tech
Package / Case
Datasheet
Download
Description
CONN HEADER VERT 16POS 3MM
Stock
491
In Stock :
491

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Adam Tech
Product Category :
Headers, Male Pins
Termination :
Kinked Pin, Solder
Packaging :
Bulk
Voltage - Rated :
250V
Shell Material :
POLYAMIDE46
JESD-609 Code :
e3
MIL Conformance :
No
Current Rating (Amps) :
Varies by WireGAuge
Mounting Type :
Through Hole
Material Flammability Rating :
UL94 V-0
Mixed Contacts :
No
RoHS Status :
ROHS3 Compliant
Contact Shape :
Square
Contact Finish - Mating :
Tin
Insulation Material :
Thermoplastic
Body Breadth :
0.345 inch
Option :
GENERAL PURPOSE
Contact Resistance :
10MOhm
Series :
DML
Style :
Board to Cable/Wire
Pitch - Mating :
0.118 3.00mm
Number of Positions Loaded :
All
Row Spacing - Mating :
0.118 (3.00mm)
Operating Temperature :
-45°C~125°C
Empty Shell :
No
Insulation Height :
0.390 9.91mm
UL Flammability Code :
94V-0
Contact Length - Post :
0.125 3.18mm
Body Length or Diameter :
1.088 inch
DIN Conformance :
No
Number of Conductors :
ONE
Contact Type :
Male Pin
Reliability :
COMMERCIAL
Insulation Color :
Black
Number of Rows :
2
Reference Standard :
UL, CSA
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Body Depth :
0.39 inch
Fastening Type :
Locking Ramp
Connector Type :
Header
Dielectric Withstanding Voltage :
1500VAC V
Shrouding :
Shrouded - 4 Wall
IEC Conformance :
No
Number of Positions :
16
Feature :
Board Guide
Filter Feature :
No
Factory Lead Time :
9 Weeks
Contact Material :
Brass
Introducing Headers, Male Pins Adam Tech DML-16-A-V-T-A from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Operating Temperature:-45°C~125°C, DML-16-A-V-T-A pinout, DML-16-A-V-T-A datasheet PDF, DML-16-A-V-T-A amp .Beyond Headers, Male Pins Adam Tech DML-16-A-V-T-A ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

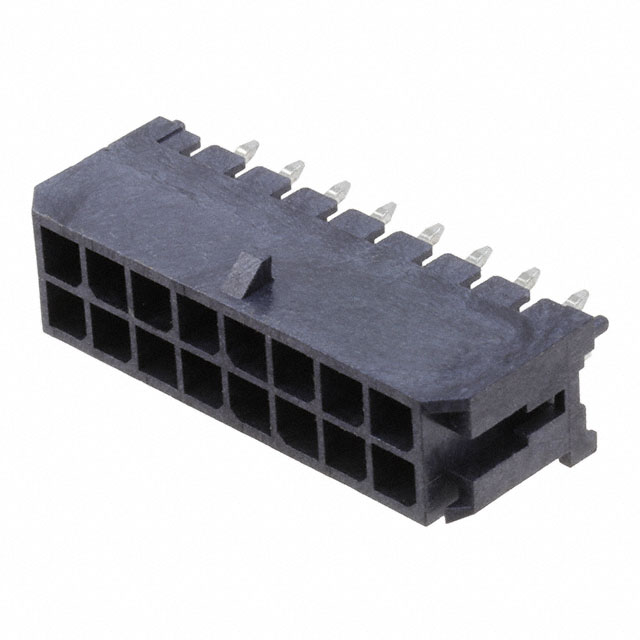

Adam Tech DML-16-A-V-T-A


DML Series 2-Row Header Kinked Pin, Solder Brass Bulk Through Hole Tin Thermoplastic 16-Position Board to Cable/Wire 0.390 9.91mm Height

DML-16-A-V-T-A Overview


A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the DML Series of products.A number of features make it more powerful because of its Board Guide feature.There is no operating temperature for the device.

DML-16-A-V-T-A Features


DML series


DML-16-A-V-T-A Applications


There are a lot of Adam Tech
DML-16-A-V-T-A Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
