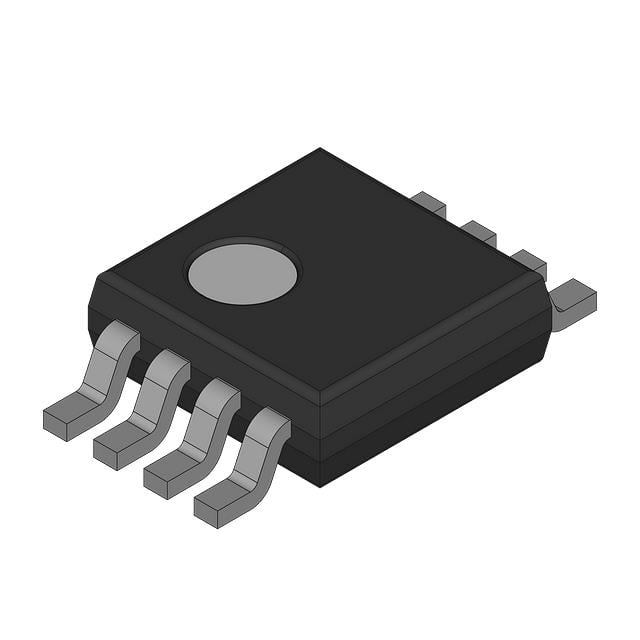

DG418LEUA-T

Manufacturer :

Analog Devices, Inc.

Product Category :

Signal Switches, Multiplexers, Decoders

Switch Circuit :

SPST - NO

Neg Supply Voltage-Nom (Vsup) :

-15V

Max Power Dissipation :

362mW

Supply Voltage :

15V

Base Part Number :

DG418L

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Channel-to-Channel Matching (ΔRon) :

100m Ω

On-State Resistance (Max) :

35Ohm

Max Supply Current :

75µA

Length :

3mm

Number of Circuits :

1

Terminal Form :

Gull wing

Turn-Off Delay Time :

210 ns

Multiplexer/Demultiplexer Circuit :

1:1

Number of Bits :

2

Pbfree Code :

yes

Switch Time (Ton, Toff) (Max) :

175ns, 185ns

Terminal Pitch :

0.65mm

Number of Terminations :

8

Pin Count :

8

Number of Functions :

1

Max Dual Supply Voltage :

20V

Mounting Type :

Surface Mount

Terminal Finish :

Matte Tin (Sn)

Packaging :

Tape and Reel (TR)

Factory Lead Time :

6 Weeks

Supply Type :

Dual, Single

Published :

2000

Number of Pins :

8

Resistance :

100Ohm

Voltage - Supply, Single/Dual (±) :

9V~36V ±4.5V~20V

ECCN Code :

EAR99

Number of Channels :

1

Radiation Hardening :

No

Nominal Supply Current :

26μA

Turn On Delay Time :

300 ns

On-state Resistance Match-Nom :

0.1Ohm

Mount :

Surface Mount

Throw Configuration :

SPST

Width :

3mm

Max Supply Voltage :

36V

Min Supply Voltage :

9V

RoHS Status :

ROHS3 Compliant

Min Dual Supply Voltage :

4.5V

Operating Supply Voltage :

18V

Package / Case :

8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Charge Injection :

15pC

Channel Capacitance (CS(off), CD(off)) :

8pF 8pF

Lead Free :

Lead Free

Peak Reflow Temperature (Cel) :

260

Current - Leakage (IS(off)) (Max) :

250pA

JESD-609 Code :

e3

Operating Temperature :

-40°C~85°C TA

Off-state Isolation-Nom :

90 dB
