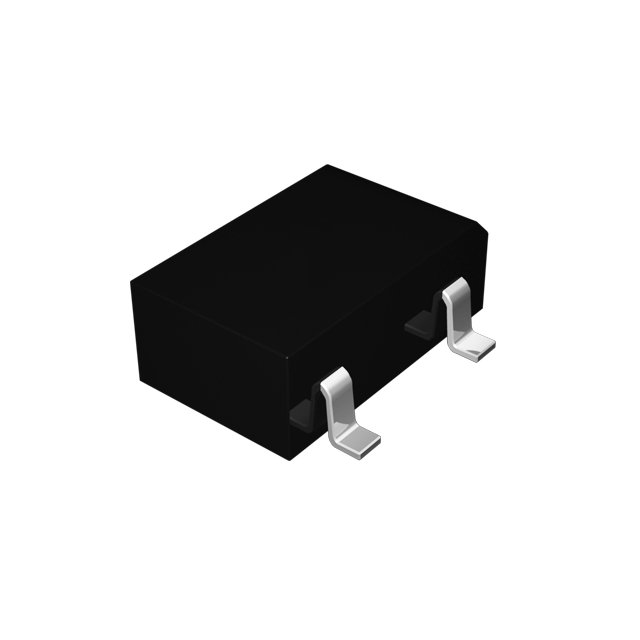

DF06S

Manufacturer :

SURGE

Product Category :

Diodes - Bridge Rectifiers

Peak Reverse Current :

5μA

Thickness :

889μm

Average Rectified Current :

1.5A

Base Part Number :

DF06

Package / Case :

4-SMD, Gull Wing

Voltage - Rated DC :

600V

Current Rating :

1.5A

Current - Reverse Leakage @ Vr :

5µA @ 600V

Operating Temperature :

-55°C~150°C TJ

Output Current :

1.5A

Peak Non-Repetitive Surge Current :

50A

Max Operating Temperature :

150°C

Max Reverse Leakage Current :

50μA

Case Code (Imperial) :

0603

Min Operating Temperature :

-55°C

Case Code (Metric) :

1608

Length :

1.6002mm

REACH SVHC :

No SVHC

Max Surge Current :

50A

Number of Elements :

1

Height :

2.93mm

Power Dissipation :

3.1W

Weight :

484mg

Supplier Device Package :

4-SDIP

Mount :

Through Hole

RoHS Status :

ROHS3 Compliant

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Voltage - Forward (Vf) (Max) @ If :

1.1V @ 1.5A

Tolerance :

5%

Number of Pins :

4

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Element Configuration :

Single

Max Repetitive Reverse Voltage (Vrrm) :

600V

Lead Free :

Lead Free

Width :

6.5mm

Radiation Hardening :

No

Packaging :

Tape and Reel (TR)

Max Junction Temperature (Tj) :

150°C

Forward Voltage :

1.1V

Mounting Type :

Surface Mount

Published :

2015

Diode Type :

Single Phase

Voltage - Rated :

100V

Current - Average Rectified (Io) :

1.5A

Max Forward Surge Current (Ifsm) :

50A

Termination :

SMD/SMT

Forward Current :

1.5A

Breakdown Voltage :

600V

Capacitance :

25pF

Factory Lead Time :

13 Weeks

Voltage - Peak Reverse (Max) :

600V

Max Power Dissipation :

3.1W

Reverse Voltage :

600V
