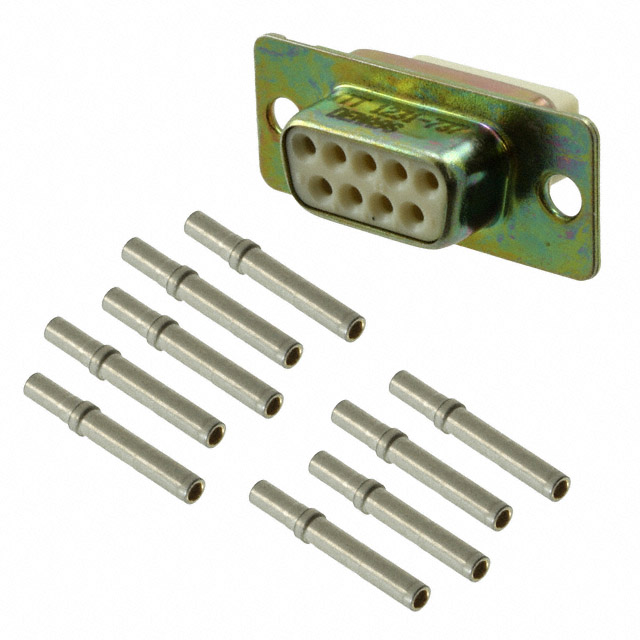

DEMA-9S

Manufacturer :

ITT Cannon

Product Category :

D-Sub Connector Assemblies

DIN Conformance :

No

Wire Size (Min) :

30 AWG

Backset Spacing :

--

Product Status :

Active

Operating Temperature :

-55°C~125°C

Voltage Rating :

--

Termination :

Crimp

Published :

2011

Contact Finish Thickness :

--

Number of Rows :

2

Reliability :

COMMERCIAL

Package :

Bulk

Flange Feature :

Housing/Shell (Unthreaded)

Features :

--

Series :

D*MA

Color :

White

Contact Type :

Signal

Gender :

Receptacle

Mounting Type :

Panel Mount

Wire Size (Max) :

18 AWG

Moisture Sensitivity Level (MSL) :

Not Applicable

Contact Plating :

Gold Plated Contacts

RoHS Status :

Non-RoHS Compliant

Packaging :

Bulk

Connector Type :

Receptacle, Female Sockets

IEC Conformance :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Ingress Protection :

--

Shell Size, Connector Layout :

1 DE E

Option :

GENERAL PURPOSE

Number of Positions :

9

Brand :

ITT Cannon

Shell Finish :

Chromate

Contact Form :

--

Mixed Contacts :

No

Pbfree Code :

No

Body Depth :

0.186 inch

RoHS :

N

Product Category :

D-Sub Tools and Hardware

Connector Style :

D-Sub

Dielectric Withstanding Voltage :

1500VAC V

Insulation Material :

GLASS FILLED DIALLYL PHTHALATE

MIL Conformance :

No

Product Type :

D-Sub Tools and Hardware

Shell Material, Finish :

Steel, Tin Plated

Mating Contact Pitch :

0.108 inch

Contact Finish :

Gold

Filter Feature :

No

Dielectric Material :

Polycyclohexylenedimethylene Terephthalate (PCT)

Manufacturer :

ITT Cannon

Wire Gauge :

--

Material Flammability Rating :

UL94 V-0

Current Rating :

7.5A

Current Rating (Amps) :

7.5A

Product :

Connectors

Contact Resistance :

55mOhm

Contact Material :

COPPER ALLOY

Total Number of Contacts :

9

Empty Shell :

No

Factory Lead Time :

21 Weeks

Contact Design :

PREASSEM CONN

Housing Material :

Polycyclohexylenedimethylene Terephthalate (PCT)
