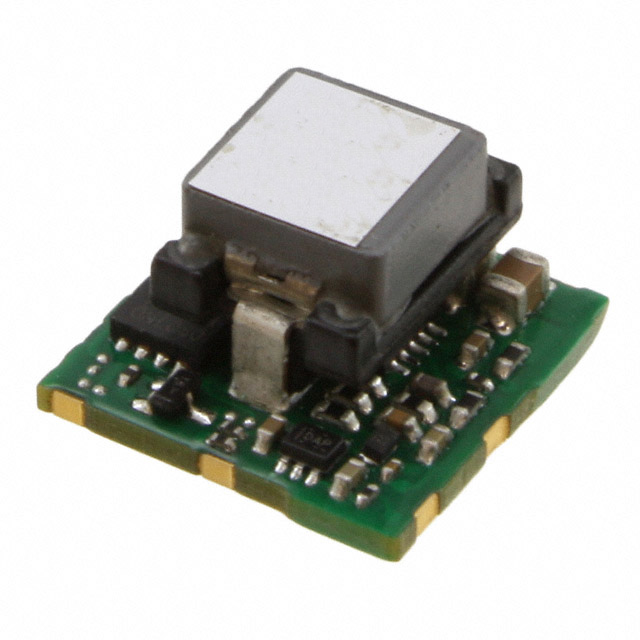

DCT04S0A0S03NFA

Manufacturer :

Delta Electronics

Product Category :

Feature :

Remote On/Off, OCP, UVLO

Size / Dimension :

0.48Lx0.48W x 0.29 H 12.2mmx12.2mmx7.3mm

Packaging :

Bulk

Min Input Voltage (DC) :

2.4V

Max Power Dissipation :

10W

Trim/Adjustable Output :

yes

Efficiency :

96.5%

Output Power :

9.9W

Voltage - Input (Min) :

2.4V

Mount :

Surface Mount

Radiation Hardening :

No

Published :

2013

ECCN Code :

EAR99

Type :

Non-Isolated PoL Module

Input Voltage-Nom :

5V

Max Output Current :

3A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Package / Case :

Module

Number of Outputs :

1

Operating Temperature :

-40°C~85°C

Terminal Position :

UNSPECIFIED

Terminal Form :

BU

Factory Lead Time :

16 Weeks

Control Features :

Enable, Active Low

Number of Functions :

1

Current - Output 1 :

3A

Mounting Type :

Surface Mount

Voltage - Output 1 :

0.6V~3.3V

RoHS Status :

RoHS Compliant

Output Current :

3A

Output Voltage :

3.3V

Applications :

ITE (Commercial)

Number of Terminations :

10

Max Input Voltage (DC) :

5.5V

Height :

7.366mm

Series :

Delphi DCT
