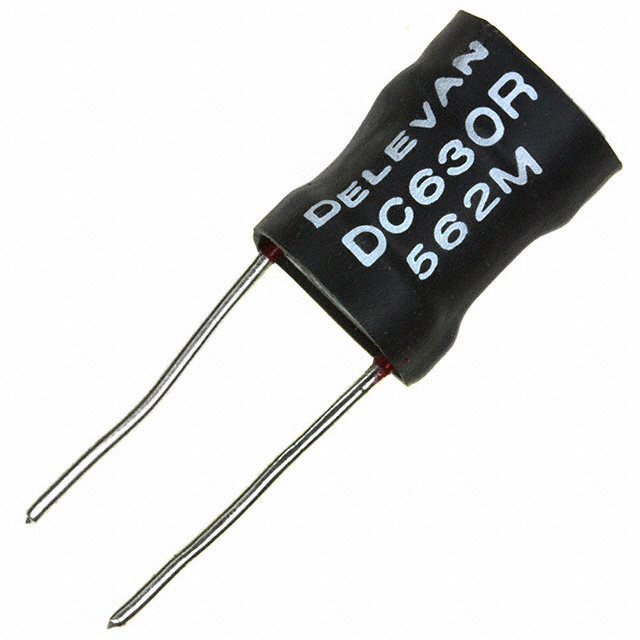

DC630R-562M
Or copy the link below:
- Mfr.Part #
- DC630R-562M
- Manufacturer
- API Delevan
- Package / Case
- Radial, Vertical Cylinder
- Datasheet
- Download
- Description
- FIXED IND 5.6UH 11.7A 7 MOHM TH
- Stock
- 1,017
- In Stock ：
- 1,017
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- API Delevan
- Product Category :
- Fixed Inductors
- Lead Free :
- Lead Free
- Inductor Application :
- POWER INDUCTOR
- Material - Core :
- Ferrite
- HTS Code :
- 8504.50.80.00
- Test Frequency :
- 10kHz
- Number of Terminations :
- 2
- RoHS Status :
- ROHS3 Compliant
- Termination :
- Radial
- Lead Diameter :
- 1.2954 mm
- Number of Functions :
- 1
- Lead Spacing :
- 12.446mm
- Published :
- 2010
- Mount :
- Through Hole
- Operating Temperature :
- -55°C~125°C
- Type :
- Wirewound
- Size / Dimension :
- 0.630Dia 16.00mm
- Inductance Frequency - Test :
- 10kHz
- JESD-609 Code :
- e2
- Shielding :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Height Seated (Max) :
- 0.830 21.08mm
- Height :
- 20.57mm
- Construction :
- Cylindrical
- Radiation Hardening :
- No
- Inductance :
- 5.6μH
- Factory Lead Time :
- 7 Weeks
- Mounting Type :
- Through Hole
- Current Rating :
- 11.7A
- Series :
- DC630R
- Terminal Finish :
- Tin/Copper (Sn99.3Cu0.7)
- Package / Case :
- Radial, Vertical Cylinder
- ECCN Code :
- EAR99
- Lead Length :
- 19.05mm
- Current - Saturation :
- 29A
- Tolerance :
- ±20%
- Shape/Size Description :
- CYLINDRICAL PACKAGE
- DC Resistance (DCR) :
- 7mOhm Max
- Packaging :
- Bulk
- Max DC Current :
- 11.7A
- Pbfree Code :
- yes
- Datasheets
- DC630R-562M
DC630R-562M datasheet pdf and Fixed Inductors product details from API Delevan Inc. stock available at
