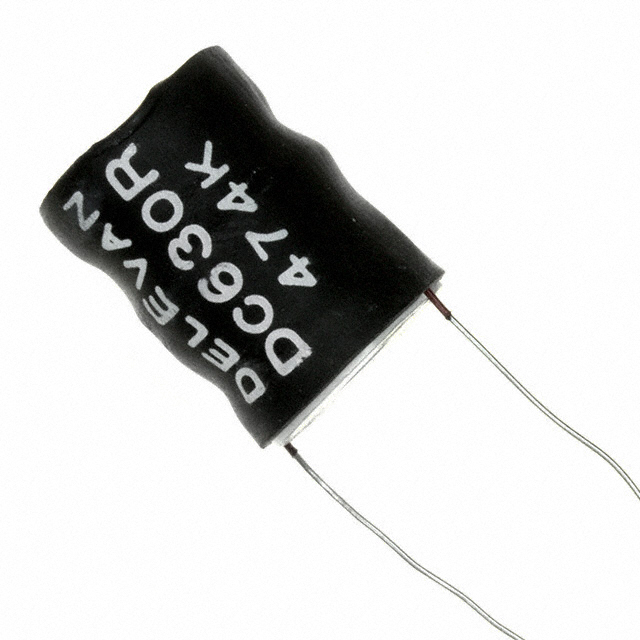

DC630R-474K

Manufacturer :

API Delevan

Product Category :

Fixed Inductors

Test Frequency :

10kHz

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Shape/Size Description :

CYLINDRICAL PACKAGE

Radiation Hardening :

No

Lead Diameter :

0.508 mm

Termination :

Radial

Shielding :

No

Lead Length :

19.05mm

Inductance Frequency - Test :

10kHz

Inductor Application :

POWER INDUCTOR

Lead Spacing :

12.192mm

DC Resistance (DCR) :

377mOhm Max

Package / Case :

Radial, Vertical Cylinder

Operating Temperature :

-55°C~125°C

Resistance :

377Ohm

Factory Lead Time :

7 Weeks

Max DC Current :

1.58A

Size / Dimension :

0.630Dia 16.00mm

Series :

DC630R

Current - Saturation :

3.1A

RoHS Status :

ROHS3 Compliant

ECCN Code :

EAR99

Height Seated (Max) :

0.830 21.08mm

Inductance :

470μH

Terminal Finish :

Tin/Copper (Sn99.3Cu0.7)

Mounting Type :

Through Hole

Published :

2010

JESD-609 Code :

e2

Mount :

Through Hole

Lead Free :

Lead Free

Height :

20.57mm

Packaging :

Bulk

Tolerance :

±10%

Material - Core :

Ferrite

Type :

Wirewound

HTS Code :

8504.50.80.00

Pbfree Code :

yes

Number of Terminations :

2

Current Rating :

1.58A

Number of Functions :

1

Construction :

Cylindrical
