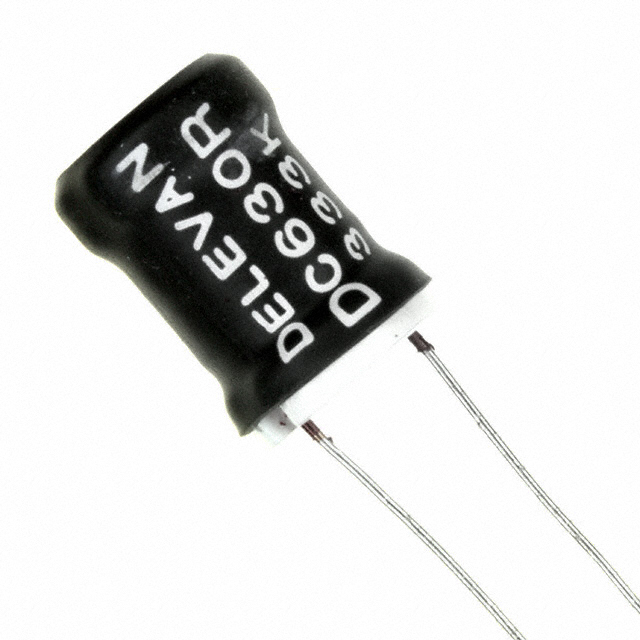

DC630R-333K
Or copy the link below:
- Mfr.Part #
- DC630R-333K
- Manufacturer
- API Delevan
- Package / Case
- Radial, Vertical Cylinder
- Datasheet
- Download
- Description
- FIXED IND 33UH 4.95A 40 MOHM TH
- Stock
- 13,221
- In Stock ：
- 13,221
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- API Delevan
- Product Category :
- Fixed Inductors
- Series :
- DC630R
- Lead Diameter :
- 0.8128 mm
- Size / Dimension :
- 0.630Dia 16.00mm
- Tolerance :
- ±10%
- HTS Code :
- 8504.50.80.00
- Mounting Type :
- Through Hole
- Shape/Size Description :
- CYLINDRICAL PACKAGE
- Construction :
- Cylindrical
- RoHS Status :
- ROHS3 Compliant
- Inductance :
- 33μH
- Test Frequency :
- 10kHz
- Pbfree Code :
- yes
- Max DC Current :
- 4.95A
- Height :
- 20.57mm
- Current Rating :
- 4.95A
- Package / Case :
- Radial, Vertical Cylinder
- Termination :
- Radial
- JESD-609 Code :
- e2
- Lead Free :
- Lead Free
- Shielding :
- No
- Number of Terminations :
- 2
- Operating Temperature :
- -55°C~125°C
- Current - Saturation :
- 11.9A
- DC Resistance (DCR) :
- 40mOhm Max
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2010
- Inductor Application :
- POWER INDUCTOR
- Mount :
- Through Hole
- Terminal Finish :
- Tin/Copper (Sn99.3Cu0.7)
- Lead Length :
- 19.05mm
- ECCN Code :
- EAR99
- Inductance Frequency - Test :
- 10kHz
- Type :
- Wirewound
- Number of Functions :
- 1
- Lead Spacing :
- 10.922mm
- Radiation Hardening :
- No
- Packaging :
- Bulk
- Factory Lead Time :
- 7 Weeks
- Material - Core :
- Ferrite
- Height Seated (Max) :
- 0.830 21.08mm
- Datasheets
- DC630R-333K
DC630R-333K datasheet pdf and Fixed Inductors product details from API Delevan Inc. stock available at
