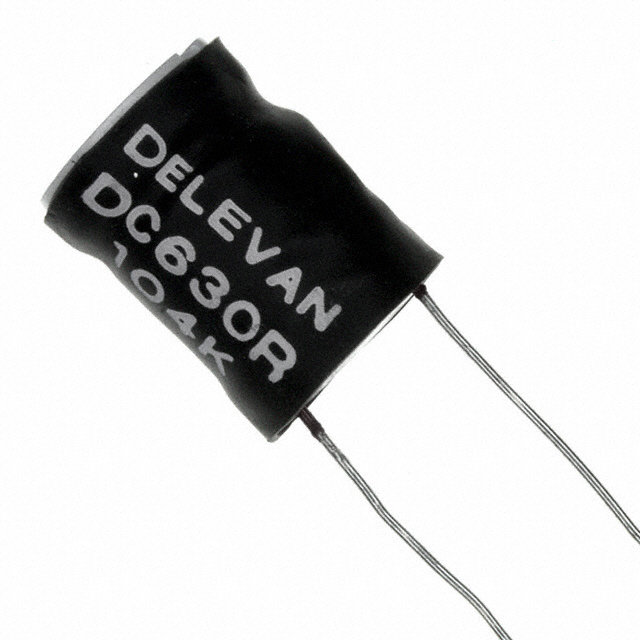

DC630R-104K
Or copy the link below:
- Mfr.Part #
- DC630R-104K
- Manufacturer
- API Delevan
- Package / Case
- Radial, Vertical Cylinder
- Datasheet
- Download
- Description
- FIXED IND 100UH 3.21A 95 MOHM TH
- Stock
- 919
- In Stock ：
- 919
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- API Delevan
- Product Category :
- Fixed Inductors
- Lead Length :
- 19.05mm
- Material - Core :
- Ferrite
- Published :
- 2010
- Mounting Type :
- Through Hole
- Tolerance :
- ±10%
- Factory Lead Time :
- 7 Weeks
- Construction :
- Cylindrical
- Height :
- 20.57mm
- Shielding :
- No
- Max DC Current :
- 3.21A
- Lead Diameter :
- 0.7366 mm
- DC Resistance (DCR) :
- 95mOhm Max
- Mount :
- Through Hole
- Current - Saturation :
- 6.8A
- Packaging :
- Bulk
- Pbfree Code :
- yes
- Shape/Size Description :
- CYLINDRICAL PACKAGE
- Radiation Hardening :
- No
- JESD-609 Code :
- e2
- Type :
- Wirewound
- Operating Temperature :
- -55°C~125°C
- Inductor Application :
- POWER INDUCTOR
- Number of Functions :
- 1
- Size / Dimension :
- 0.630Dia 16.00mm
- Test Frequency :
- 10kHz
- RoHS Status :
- ROHS3 Compliant
- Terminal Finish :
- Tin/Copper (Sn99.3Cu0.7)
- Inductance :
- 100μH
- Current Rating :
- 3.21A
- Number of Terminations :
- 2
- Lead Spacing :
- 12.192mm
- Termination :
- Radial
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ECCN Code :
- EAR99
- Series :
- DC630R
- Inductance Frequency - Test :
- 10kHz
- Lead Free :
- Lead Free
- HTS Code :
- 8504.50.80.00
- Package / Case :
- Radial, Vertical Cylinder
- Height Seated (Max) :
- 0.830 21.08mm
- Datasheets
- DC630R-104K
DC630R-104K datasheet pdf and Fixed Inductors product details from API Delevan Inc. stock available at
