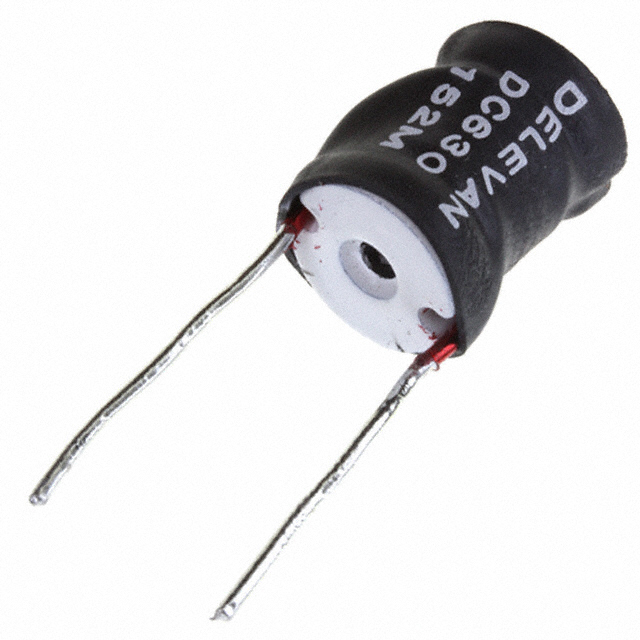

DC630-474K

Manufacturer :

API Delevan

Product Category :

Fixed Inductors

HTS Code :

8504.50.80.00

Inductor Application :

POWER INDUCTOR

Mounting Type :

Through Hole

Packaging :

Bulk

Termination :

Radial

Current - Saturation :

3.1A

Test Frequency :

10kHz

Core Material :

Ferrite

Lead Spacing :

12.192mm

ECCN Code :

EAR99

Mount :

Through Hole

Shielding :

No

Number of Functions :

1

RoHS Status :

Non-RoHS Compliant

Max DC Current :

1.58A

Operating Temperature :

-55°C~125°C

Published :

2002

Tolerance :

±10%

Inductance :

470μH

Package / Case :

Radial, Vertical Cylinder

JESD-609 Code :

e0

Resistance :

377Ohm

Pbfree Code :

No

Size / Dimension :

0.630Dia 16.00mm

Terminal Finish :

Tin/Lead (Sn/Pb)

Lead Free :

Contains Lead

Height :

20.57mm

Inductance Frequency - Test :

10kHz

Lead Length :

19.05mm

Type :

Wirewound

Radiation Hardening :

No

Factory Lead Time :

7 Weeks

Shape/Size Description :

CYLINDRICAL PACKAGE

Height Seated (Max) :

0.830 21.08mm

Current Rating :

1.58A

DC Resistance (DCR) :

377mOhm Max

Number of Terminations :

2

Diameter :

16mm

Series :

DC630

Construction :

Cylindrical
