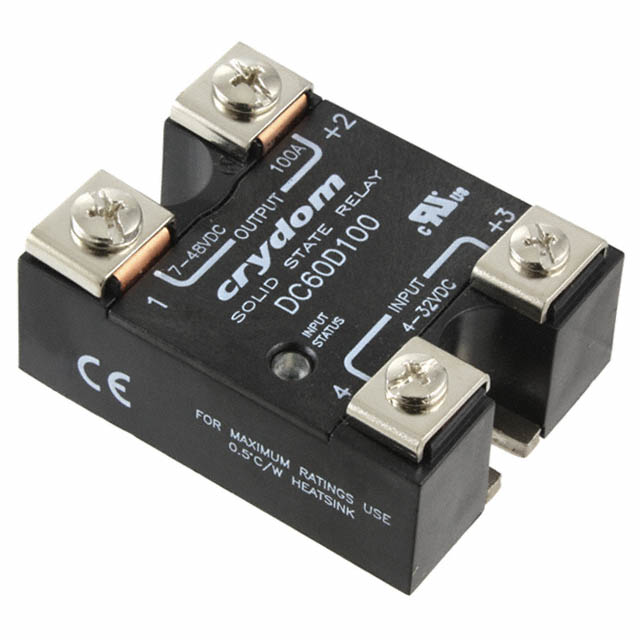

DC60D100

Manufacturer :

Sensata Technologies – Crydom

Product Category :

Solid State Relays

Termination :

Screw Terminal

Number of Elements :

1

Current Rating :

100 A

Output Type :

DC

Rad Hardened :

No

Input Signal :

4-32 VDC

Nominal Output Voltage :

3.3 VDC, 6 VDC, 12 VDC, 24 VDC, 48 VDC, 60 VDC

HTS Code :

8541.40.95.00

Forward Current-Max :

0.012A

Pin Count :

4

Input Type :

DC

Output Voltage :

1-60 VDC

Isolation Voltage :

2500(V)

RoHS Status :

RoHS Compliant

Input Voltage :

32(V)

Output Voltage (Max) :

48(V)

Operating Temperature (Max) :

80°C

On-State Resistance (Max) :

0.0059Ohm

Manufacturer :

Crydom

Mounting :

Screw

Input Polarity :

DC

Operating Temperature Classification :

COMMERCIAL

Operating Temp Range :

-30C to 80C

Output Current :

100000(mA)

Operating Temperature (Min) :

-30°C

Reach Compliance Code :

Compliant

Isolation Voltage-Max :

2500V

On-State Current-Max :

100A

Additional Feature :

UL RECOGNIZED

Optoelectronic Device Type :

TRANSISTOR OUTPUT SSR

Input Current :

12(mA)

Output Device :

MOSFET
