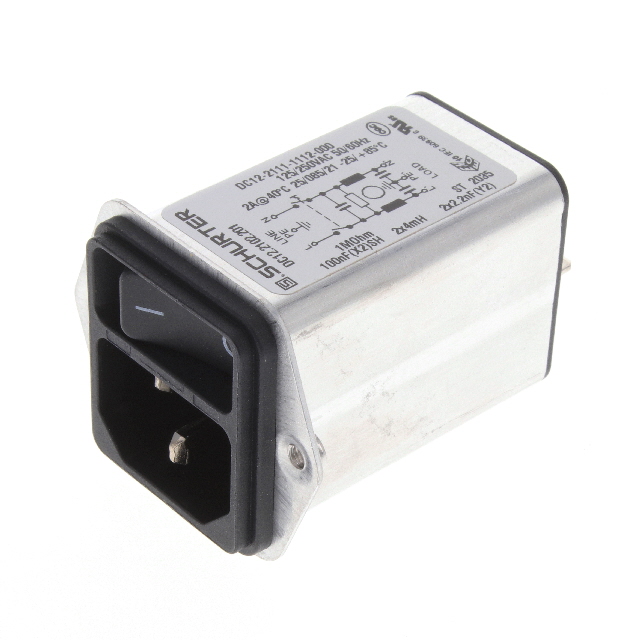

DC12.2102.201

Manufacturer :

SCHURTER

Product Category :

Power Entry Modules (PEM)

Number of Positions :

3

Weight :

64.000012g

Moisture Sensitivity Level (MSL) :

Vendor Undefined

Accomodates a Fuse :

No

Filter Type :

Filtered (EMI, RFI) - Commercial

Coupling Type :

Snap

Resistance :

1MOhm

REACH SVHC :

No SVHC

Number of Poles :

2

Max Operating Temperature :

85°C

Housing Material :

Thermoplastic

Orientation :

Straight

Series :

DC12

MIL Conformance :

No

Switch Features :

Switch On-Off

Option :

GENERAL PURPOSE

Flammability Rating :

UL94 V-0

Total Number of Contacts :

3

Material Flammability Rating :

UL94 V-0

IEC Conformance :

yes

Packaging :

Bulk

RoHS Status :

ROHS3 Compliant

Ingress Protection :

IP40

Approval Agency :

CQC, cULus, ENEC

Termination :

Quick Connect - 0.250 (6.3mm)

Connector Type :

Receptacle, Male Blades - Module

Shell Material :

POLYETHYLENE

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Voltage - Rated DC :

250V

Capacitance :

100nF

Panel Cutout Dimensions :

Rectangular - 30.40mm x 34.40mm

Gender :

Male

Mounting Type :

Panel Mount, Flange

Max Voltage Rating (AC) :

250V

Max Current Rating :

2A

Package / Case :

Module

Factory Lead Time :

12 Weeks

Voltage - Rated AC :

250V

Number of Ports :

1

Min Operating Temperature :

-25°C

DIN Conformance :

No

Pbfree Code :

yes

Mount :

Flanges, Panel, Screw

Voltage - IEC :

250VAC

Current :

2A

Current Rating :

2A

Connector Style :

IEC 320-C14

Voltage - UL :

125VAC

Feature :

Shielded, V-Lock Notch
