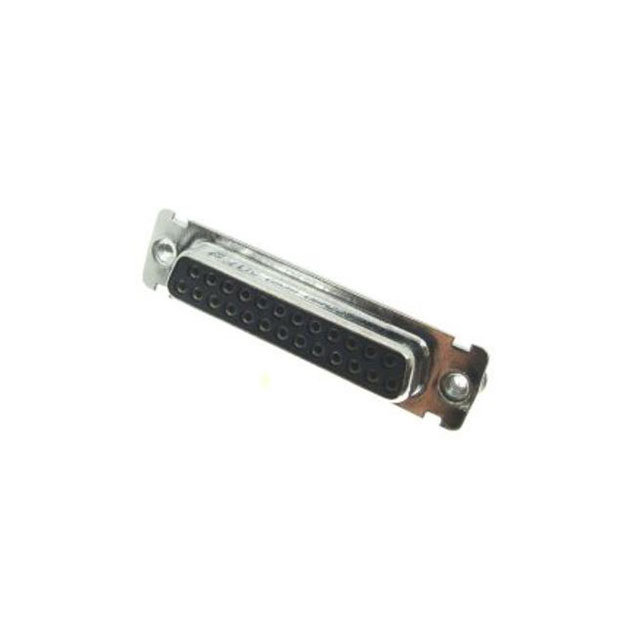

DBMZ25SNK126
Or copy the link below:
- Mfr.Part #
- DBMZ25SNK126
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 25P PNL MNT SLDR
- Stock
- 56
- In Stock ：
- 56
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- D-Sub Connector Assemblies
- Empty Shell :
- No
- Mating Contact Pitch :
- 0.109 inch
- Orientation :
- Straight
- Body Breadth :
- 0.494 inch
- Shell Finish :
- Tin
- RoHS Status :
- RoHS Compliant
- Gender :
- Receptacle
- PCB Contact Pattern :
- STAGGERED
- Contact Plating :
- Gold
- Shell Size, Connector Layout :
- 3 DB B
- Reliability :
- COMMERCIAL
- Series :
- D*M
- Number of Rows :
- 2
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Manufacturer :
- ITT Cannon
- Body Depth :
- 0.3 inch
- Shell Size :
- 3 (B)
- Voltage Rating :
- --
- Connector Type :
- Receptacle, Female Sockets
- MIL Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Dielectric Withstanding Voltage :
- 1000VAC V
- Ingress Protection :
- --
- Operating Temperature :
- -55°C~125°C
- Mount :
- Through Hole
- Contact Type :
- Signal
- DIN Conformance :
- No
- Current Rating (Amps) :
- 7.5A
- Contact Gender :
- Socket (Female)
- Contact Finish :
- Gold
- Product Type :
- D-Sub Connectors - Standard Density
- Feature :
- Board Lock
- Type :
- Receptacle
- Flange Feature :
- Board Side (4-40)
- Mixed Contacts :
- No
- Total Number of Contacts :
- 25
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Number Of PCB Rows :
- 2
- Contact Form :
- Machined
- Brand :
- ITT Cannon
- Connector Style :
- D-Sub
- IEC Conformance :
- No
- Factory Lead Time :
- 12 Weeks
- Product Category :
- D-Sub Standard Connectors
- Current Rating :
- 7.5A
- Termination :
- Solder
- Mounting Type :
- Panel Mount, Through Hole
- Dielectric Material :
- Polycyclohexylenedimethylene Terephthalate (PCT)
- Product Status :
- Active
- Features :
- Board Lock
- Wire Gauge :
- --
- Contact Material :
- COPPER ALLOY
- Filter Feature :
- No
- Shell Material, Finish :
- Steel, Tin-Nickel Plated
- Contact Resistance :
- 55mOhm
- Option :
- GENERAL PURPOSE
- UL Flammability Code :
- 94V-0
- Housing Material :
- Polychlorinated
- Packaging :
- Bulk
- Number of Positions :
- 25
- Color :
- Black
- Base Product Number :
- DBMZ
- Package :
- Bulk
- Plating Thickness :
- 30μin
- Reference Standard :
- UL, CSA
- Published :
- 2000
- Contact Finish Thickness :
- 30.0μin 0.76μm
- RoHS :
- Details
- Backset Spacing :
- --
- Datasheets
- DBMZ25SNK126
DBMZ25SNK126 Documents
D*M Series D-Sub Receptacle, Female Sockets 25-Position Receptacle Signal Solder 3 DB B Panel Mount, Through Hole Copper Alloy Gold Steel, Tin-Nickel Plated
DBMZ25SNK126 Overview
A Receptacle, Female Sockets package is included with it.Panel Mount, Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the D*M Series.In many ways, Board Lock makes it more powerful.By Through Hole, the part is mounted.Operating temperature is set to -55°C~125°C.
DBMZ25SNK126 Features
D*M series
DBMZ25SNK126 Applications
There are a lot of ITT Cannon, LLC
DBMZ25SNK126 D-Sub Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
