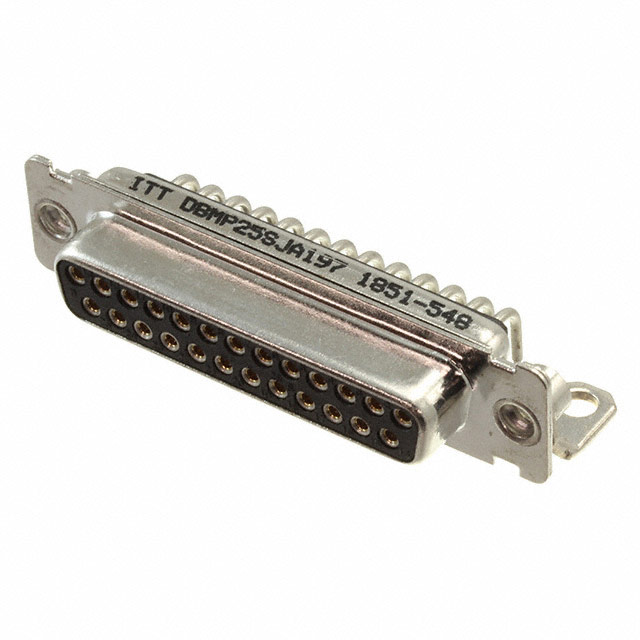

DBMP25SJA197
Or copy the link below:
- Mfr.Part #
- DBMP25SJA197
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 25POS R/A PCB
- Stock
- 40
- In Stock ：
- 40
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- D-Sub Connector Assemblies
- Contact Current Rating :
- 7.5A
- Mixed Contacts :
- No
- Factory Lead Time :
- 12 Weeks
- Current Rating (Amps) :
- 7.5A
- Number of Positions :
- 25
- Length :
- 53.04mm
- Option :
- GENERAL PURPOSE
- Flange Feature :
- Board Side (4-40)
- Shell Material, Finish :
- Steel, Tin-Nickel Plated
- Contact Plating :
- Gold
- Connector Type :
- Receptacle, Female Sockets
- Gender :
- Receptacle
- Type :
- Receptacle
- Wire Gauge :
- --
- Contact Finish :
- Gold
- Series :
- D*M
- Contact Material :
- COPPER ALLOY
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- Contact Gender :
- Socket (Female)
- Material Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- UL Flammability Code :
- 94V-0
- Color :
- Black
- Mounting Angle :
- RIGHT ANGLE
- Number of Ports :
- 1
- Voltage Rating :
- --
- Feature :
- Mounting Brackets
- Package :
- Bulk
- Total Number of Contacts :
- 25
- Current Rating :
- 7.5A
- Shell Finish :
- Tin
- Backset Spacing :
- --
- Mounting Style :
- Panel
- Contact Finish Thickness :
- --
- Shell Size, Connector Layout :
- 3 DB B
- Connector Style :
- D-Sub
- Contact Type :
- Signal
- Published :
- 2000
- Mount :
- Through Hole
- Ingress Protection :
- --
- IEC Conformance :
- No
- Product Status :
- Active
- Contact Style :
- Socket
- Number of Rows :
- 2
- Dielectric Material :
- Polycyclohexylenedimethylene Terephthalate (PCT)
- MIL Conformance :
- No
- RoHS Status :
- RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Empty Shell :
- No
- Termination Style :
- Solder
- Number of Terminations :
- 25
- Housing Material :
- Polychlorinated
- Operating Temperature :
- -55°C~125°C
- Features :
- Mounting Brackets
- Contact Form :
- Machined
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Packaging :
- Bulk
- DIN Conformance :
- No
- Orientation :
- RIGHT ANGLE
- Shell Size :
- 3 (B)
- Filter Feature :
- No
- Datasheets
- DBMP25SJA197
DBMP25SJA197 Documents
D*M Series D-Sub Receptacle, Female Sockets 25-Position Receptacle Signal Solder 3 DB B Panel Mount, Through Hole, Right Angle Copper Alloy Gold Steel, Tin-Nickel Plated
DBMP25SJA197 Overview
The product comes in a package of Receptacle, Female Sockets.Its mounting type is Panel Mount, Through Hole, Right Angle.Packaging is performed using a Bulk case.It is part of the D*M Series of products.The device is equipped with 1 ports for the management of a variety of tasks.A number of features make it more powerful because of its Mounting Brackets feature.Through Hole mounts the part.25 terminations are present on the chip.There is no operating temperature for the device.
DBMP25SJA197 Features
25 basic kinds of terminations
D*M series
DBMP25SJA197 Applications
There are a lot of ITT Cannon, LLC
DBMP25SJA197 D-Sub Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
