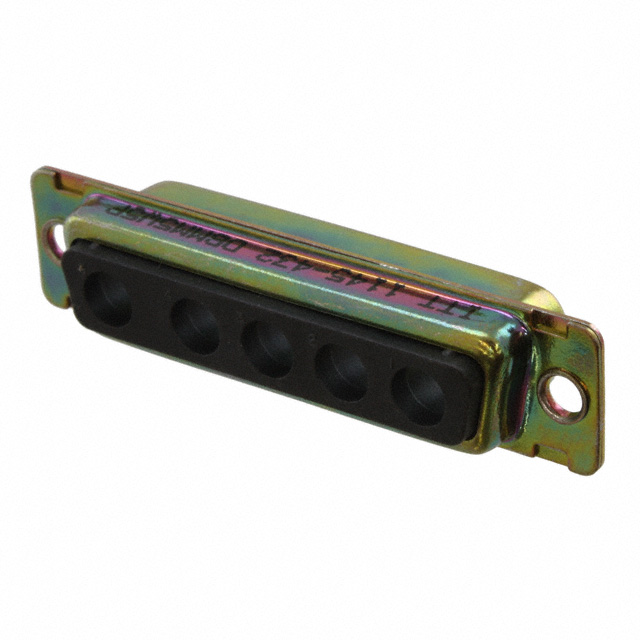

DBMM-5W5P
Or copy the link below:
- Mfr.Part #
- DBMM-5W5P
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB HOUSING PLUG 5POS
- Stock
- 11
- In Stock ：
- 11
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- D-Sub, D-Shaped Connector Housings
- Total Number of Contacts :
- 5
- Insulation Material :
- POLYETHYLENE
- Note :
- Contacts Not Included
- Contact Type :
- Coax or Power
- Series :
- 24308-Style, Combo D®, D*MM
- Type :
- PLUG
- Contact Finish - Mating :
- GOLD (30) OVER COPPER
- Features :
- Shielded
- Empty Shell :
- yes
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Package :
- Bulk
- Packaging :
- Bulk
- Pbfree Code :
- No
- Reliability :
- COMMERCIAL
- Mounting Angle :
- Straight
- Contact Arrangement :
- S0C5
- Mixed Contacts :
- No
- Connector Type :
- Plug for Male Contacts
- Dielectric Material :
- Polyester
- Filter Feature :
- No
- UL Flammability Code :
- 94V-0
- Mating Cycles :
- --
- Flange Feature :
- Housing/Shell (Unthreaded)
- Body Breadth :
- 0.494 inch
- Feature :
- Shielded
- Rated Current (Signal) :
- 5A
- Option :
- GENERAL PURPOSE
- Body Length or Diameter :
- 2.088 inch
- RoHS :
- N
- Shell Finish Thickness :
- --
- Shell Finish :
- Cadmium
- Shell Size, Connector Layout :
- 3 DB B - 5W5
- Contact Gender :
- Pin (Male)
- Wire Size (Max) :
- 20 AWG
- Mounting Type :
- Free Hanging (In-Line)
- Termination Style :
- Solder Cup
- Number of Positions :
- 5 (Coax or Power)
- Reference Standard :
- UL
- Number of Rows :
- 1
- Ingress Protection :
- --
- Published :
- 2013
- Manufacturer :
- ITT Cannon
- Termination Type :
- Solder
- Product Status :
- Active
- Color :
- Black
- DIN Conformance :
- No
- Mounting Style :
- Wire
- Contact Resistance :
- 7.5mOhm
- Brand :
- ITT Cannon
- Body/Shell Style :
- Receptacle
- Product Type :
- D-Sub Connectors - Standard Density
- Wire Size (Min) :
- 20 AWG
- Base Product Number :
- DBMM
- Gender :
- Male
- Connector Style :
- D-Sub, Combo
- Operating Temperature :
- -55°C~150°C
- Shell Material, Finish :
- Steel, Yellow Chromate Plated Zinc
- Product Category :
- D-Sub Standard Connectors
- Factory Lead Time :
- 21 Weeks
- IEC Conformance :
- No
- RoHS Status :
- Non-RoHS Compliant
- MIL Conformance :
- No
- Contact Design :
- PREASSEM CONN
- Contact Material :
- COPPER ALLOY
- Datasheets
- DBMM-5W5P
DBMM-5W5P datasheet pdf and D-Sub, D-Shaped Connectors - Housings product details from ITT Cannon, LLC stock available at Xinshop
