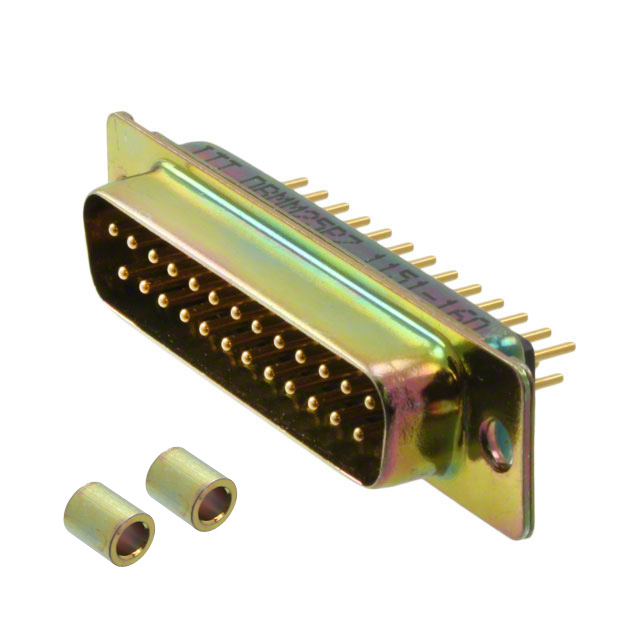

DBMM-25P-Z
Or copy the link below:
- Mfr.Part #
- DBMM-25P-Z
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 25P PNL MNT SLDR
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- D-Sub Connector Assemblies
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Features :
- --
- Product Status :
- Active
- Contact Type :
- Signal
- Shell Size :
- B
- Gender :
- Male
- Shell Size, Connector Layout :
- 3 DB B
- Option :
- GENERAL PURPOSE
- Dielectric Material :
- Polycyclohexylenedimethylene Terephthalate (PCT)
- JESD-609 Code :
- e4
- Backset Spacing :
- --
- Mixed Contacts :
- No
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Voltage Rating :
- --
- Shell Finish :
- Chromate
- Product :
- Connectors
- Package :
- Bulk
- Color :
- Black
- DIN Conformance :
- No
- PCB Contact Pattern :
- STAGGERED
- Mounting Option 2 :
- LOCKING
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Number of Rows :
- 2
- Termination Style :
- Solder Cup
- Number of Ports :
- 1
- Contact Finish :
- Gold
- Shell Material, Finish :
- Steel, Tin Plated
- Mounting Angle :
- Straight
- Connector Type :
- Plug, Male Pins
- Contact Plating :
- Gold
- Wire Gauge :
- --
- Product Type :
- D-Sub MIL Spec Connectors
- Current Rating (Amps) :
- 7.5A
- Contact Material :
- COPPER ALLOY
- RoHS :
- N
- Plating Thickness :
- 50μin
- Ingress Protection :
- --
- Orientation :
- Straight
- Mounting Style :
- Panel
- Flange Feature :
- Housing/Shell (Unthreaded)
- Current Rating :
- 7.5A
- Number of Positions :
- 25
- Reference Standard :
- UL
- Body Breadth :
- 0.494 inch
- Material Flammability Rating :
- UL94 V-0
- Total Number of Contacts :
- 25
- Mounting Type :
- Panel Mount, Through Hole
- Housing Material :
- Polychlorinated
- UL Flammability Code :
- 94V-0
- Filter Feature :
- No
- Termination :
- Solder
- Product Category :
- D-Sub MIL Spec Connectors
- IEC Conformance :
- No
- Contact Form :
- Machined
- Manufacturer :
- ITT Cannon
- Number Of PCB Rows :
- 2
- Connector Style :
- D-Sub
- Published :
- 2011
- Pbfree Code :
- No
- RoHS Status :
- Non-RoHS Compliant
- Series :
- 24308-Style, D*MM
- Empty Shell :
- No
- Brand :
- ITT Cannon
- MIL Conformance :
- yes
- Operating Temperature :
- -55°C~150°C
- Factory Lead Time :
- 18 Weeks
- Datasheets
- DBMM-25P-Z
24308-Style, D*MM Series D-Sub Plug, Male Pins 25-Position Male Signal Solder 3 DB B Panel Mount, Through Hole Copper Alloy Gold Steel, Tin Plated
DBMM-25P-Z Overview
Packaging for this item is Plug, Male Pins.Panel Mount, Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the 24308-Style, D*MM Series.The device has 1 ports for managing a variety of tasks.It operates at an operating temperature of -55°C~150°C.
DBMM-25P-Z Features
24308-Style, D*MM series
DBMM-25P-Z Applications
There are a lot of ITT Cannon, LLC
DBMM-25P-Z D-Sub Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
