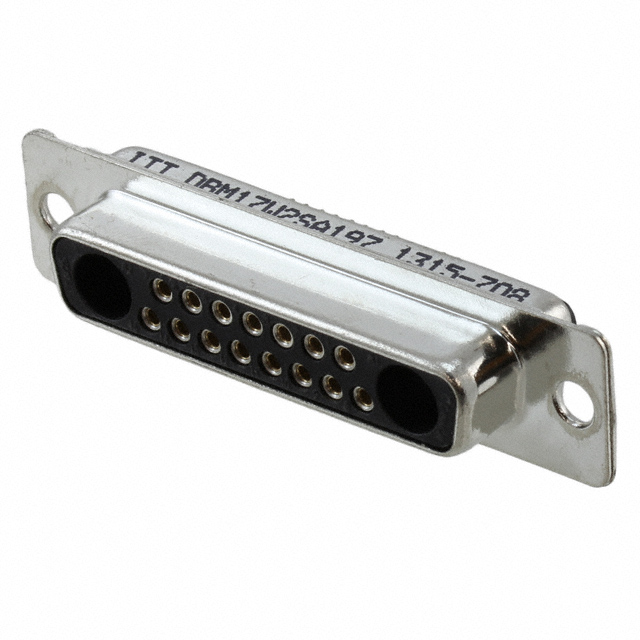

DBM-17W2S-A197
Or copy the link below:
- Mfr.Part #
- DBM-17W2S-A197
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 17POS PNL MNT
- Stock
- 179
- In Stock ：
- 179
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- D-Sub Connector Assemblies
- Brand :
- ITT Cannon
- Pbfree Code :
- yes
- Type :
- Receptacle
- Termination Style :
- Solder
- Dielectric Material :
- Polycyclohexylenedimethylene Terephthalate (PCT)
- Housing Material :
- Polycyclohexylenedimethylene Terephthalate (PCT)
- Product Type :
- D-Sub Connectors - Standard Density
- Insulation Material :
- Polyester
- Termination :
- Solder Cup
- Contact Type :
- Signal and Coax or Power (Not Included)
- Contact Finish :
- Gold
- Product Category :
- D-Sub Standard Connectors
- Published :
- 2013
- Voltage Rating :
- --
- Product Status :
- Active
- Shell Finish :
- Tin
- Mounting Style :
- Through Hole
- Operating Temperature :
- -55°C~125°C
- Body Depth :
- 0.39 inch
- Series :
- Combo D®, D*M
- Gender :
- FEMALE
- Number of Positions :
- 17 (15 + 2 Coax or Power)
- RoHS Status :
- RoHS Compliant
- Total Number of Contacts :
- 17
- Connector Style :
- D-Sub, Combo
- Contact Form :
- --
- Contact Plating :
- Gold
- Package :
- Bulk
- Number of Conductors :
- ONE
- Number of Rows :
- 2
- Shell Size, Connector Layout :
- 3 DB B - 17W2
- Ingress Protection :
- --
- Reliability :
- COMMERCIAL
- Contact Resistance :
- 55mOhm
- Manufacturer :
- ITT Cannon
- Mounting Type :
- Panel Mount
- ECCN Code :
- EAR99
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- DIN Conformance :
- No
- Contact Finish Thickness :
- Flash
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Flange Feature :
- Housing/Shell (Unthreaded)
- Current Rating (Amps) :
- 7.5A
- Material Flammability Rating :
- UL94 V-0
- Mounting Angle :
- Straight
- Empty Shell :
- No
- Factory Lead Time :
- 21 Weeks
- MIL Conformance :
- No
- Connector Type :
- Receptacle, Female Sockets
- Filter Feature :
- No
- Packaging :
- Bulk
- HTS Code :
- 8536.69.40.30
- Shell Plating :
- Tin
- Color :
- Black
- JESD-609 Code :
- e4
- IEC Conformance :
- No
- Option :
- GENERAL PURPOSE
- Contact Gender :
- Socket (Female)
- Reference Standard :
- UL
- Mixed Contacts :
- yes
- Features :
- Shielded
- UL Flammability Code :
- 94V-0
- Wire Gauge :
- 8-26 AWG
- Contact Material :
- COPPER ALLOY
- RoHS :
- Details
- Body Breadth :
- 0.494 inch
- Current Rating :
- 7.5A
- Feature :
- Shielded
- Backset Spacing :
- --
- Shell Material, Finish :
- Steel, Tin-Nickel Plated
- Datasheets
- DBM-17W2S-A197
DBM-17W2S-A197 Documents
Combo D®, D*M Series D-Sub, Combo Receptacle, Female Sockets 17 (15 + 2 Coax or Power)-Position Female Signal and Coax or Power (Not Included) Solder Cup 3 DB B - 17W2 Panel Mount Copper Alloy Gold Steel, Tin-Nickel Plated
DBM-17W2S-A197 Overview
A Receptacle, Female Sockets package is included with it.Panel Mount indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Combo D®, D*M Series.In many ways, Shielded makes it more powerful.Operating temperature is set to -55°C~125°C.
DBM-17W2S-A197 Features
Combo D®, D*M series
DBM-17W2S-A197 Applications
There are a lot of ITT Cannon, LLC
DBM-17W2S-A197 D-Sub Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
