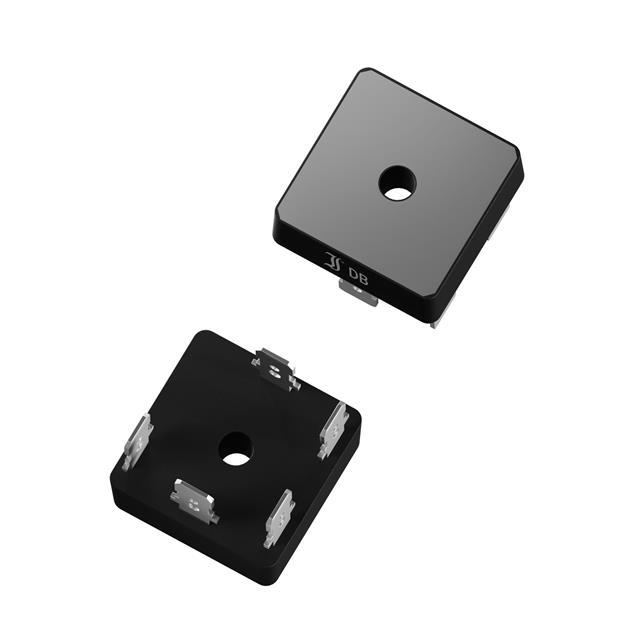

DB15-10

Manufacturer :

Diotec Semiconductor

Product Category :

Diodes - Bridge Rectifiers

Peak Average Forward Current (A) :

15

Diode Type :

BRIDGE RECTIFIER DIODE

Package Width :

28.5

Terminal Position :

UPPER

Additional Feature :

UL RECOGNIZED

Number of Phases :

3

PCB changed :

5

Configuration :

Single

Military :

No

Reach Compliance Code :

Compliant

Diode Element Material :

SILICON

Output Current-Max :

15 A

Package Height :

10

Pin Count :

5

Maximum Operating Temperature (°C) :

150

Subcategory :

Bridge Rectifier Diodes

Mounting :

Screw

Peak RMS Reverse Voltage (V) :

700

Package Length :

28.5

ECCN (US) :

EAR99

Packaging :

Box

JESD-30 Code :

S-PUFM-X5

Minimum Operating Temperature (°C) :

-50

Number of Elements :

6

Terminal Form :

UNSPECIFIED

Peak Reflow Temperature (Cel) :

260

RoHS Status :

Yes with exemptions

Bridge Type :

Three Phase

Number of Terminals :

5

Peak Reverse Current (uA) :

10

Peak Non-Repetitive Forward Surge Current (A) :

385

Qualification Status :

Not Qualified

Surface Mount :

No

HTS Code :

8541.10.00.80

Non-rep Pk Forward Current-Max :

385 A

Package Shape :

Square

Peak Reverse Recovery Time (ns) :

1500(Typ)

Rep Pk Reverse Voltage-Max :

1000 V

Case Connection :

Isolated

Manufacturer :

Diotec Semiconductor AG

Supplier Temperature Grade :

COMMERCIAL

Peak Reverse Repetitive Voltage (V) :

1000
