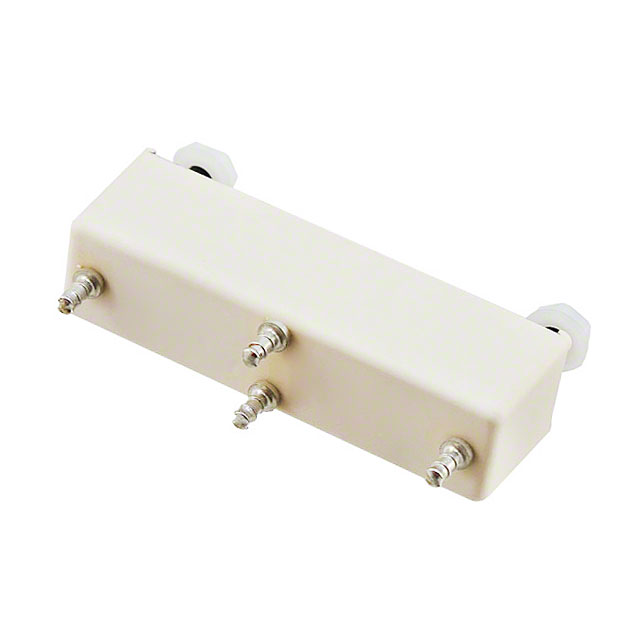

DAT72410P
Or copy the link below:
- Mfr.Part #
- DAT72410P
- Manufacturer
- Sensata Technologies – Cynergy3
- Package / Case
- Datasheet
- Download
- Description
- RELAY REED SPST-NO 2A 24V
- Stock
- 105
- In Stock ：
- 105
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sensata Technologies – Cynergy3
- Product Category :
- Reed Relays
- Termination :
- Turret
- Contact Material :
- Tungsten (W)
- Body Breadth :
- 15.8 mm
- ECCN Code :
- EAR99
- Coil Current :
- 30.7mA
- Factory Lead Time :
- 8 Weeks
- Relay Action :
- Momentary
- Switching Current :
- 2A
- Coil Voltage :
- 24VDC
- Termination Style :
- Solder Turret
- Must Release Voltage :
- 4VDC
- Contact Current(AC)-Max :
- 2A
- Must Operate Voltage :
- 20VDC
- Operating Temperature :
- -20°C~70°C
- Mounting Type :
- Chassis Mount
- Release Time :
- 2ms
- Coil Type :
- Non Latching
- Body Length or Diameter :
- 60mm
- Contact Resistance :
- 250mOhm
- Coil Voltage (DC) :
- 24V
- Packaging :
- Tray
- Contact/Output Supply Type :
- AC/DC
- Contact Voltage(AC)-Max :
- 7000V
- Coil/Input Supply Type :
- DC
- Contact Voltage(DC)-Max :
- 7000V
- Contact Form :
- SPST-NO (1 Form A)
- Contact (DC) Max Rating R Load :
- 2A@7000VDC
- Body Height :
- 18.5mm
- Mount :
- Chassis Mount, Panel
- Physical Dimension :
- 60mm x 15.8mm x 18.5mm
- Relay Type :
- Reed
- RoHS Status :
- ROHS3 Compliant
- Switching Voltage :
- 7000VAC 7000VDC -Max
- Operate Time :
- 3ms
- Series :
- DA
- Throw Configuration :
- SPST
- Number of Terminations :
- 4
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Electrical Life :
- 1000000000 Cycle(s)
- Weight :
- 28g
- Contact Current(DC)-Max :
- 2A
- Pbfree Code :
- yes
- Additional Feature :
- PANEL MOUNTABLE
- Contact (AC) Max Rating R Load :
- 2A@7000VAC
- Coil Resistance :
- 780Ohm
- Published :
- 2007
- Datasheets
- DAT72410P
DAT72410P Documents
DAT72410P datasheet pdf and Reed Relays product details from Cynergy 3 stock available at
Features of the Cynergy3 DAT72410P Reed Relay include a low power consumption of just 0.5W, a contact resistance of less than 100mΩ, and a maximum switching voltage of 24V DC. It also has a maximum switching current of 2A and a maximum switching power of 48W. The relay is also RoHS compliant and UL approved.
The Cynergy3 DAT72410P Reed Relay is suitable for a wide range of applications, including industrial automation, home automation, security systems, and medical equipment. It is also suitable for use in automotive and marine applications.
