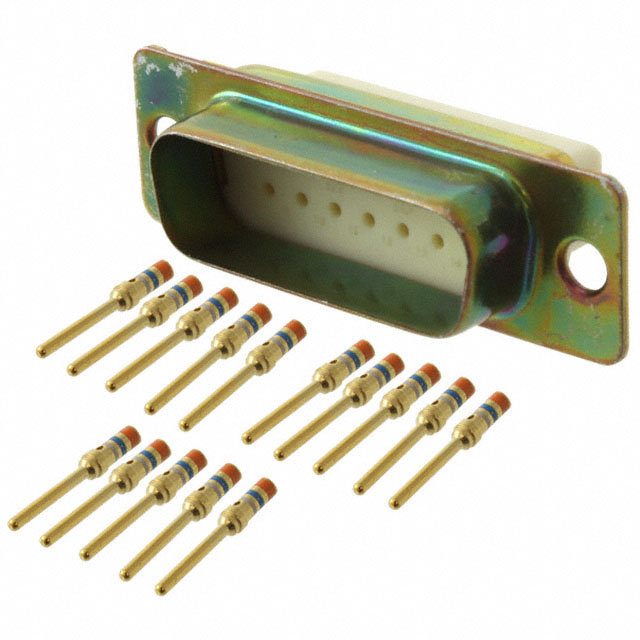

DAMAM-15P
Or copy the link below:
- Mfr.Part #
- DAMAM-15P
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLG 15P PNL MT CRIMP
- Stock
- 11,071
- In Stock ：
- 11,071
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- D-Sub Connector Assemblies
- Product Category :
- D-Sub Standard Connectors
- Shell Size, Connector Layout :
- 2 (DA, A)
- Number of Positions :
- 15
- Wire Gauge :
- --
- IEC Conformance :
- No
- Current Rating (Amps) :
- 7.5A
- Insulator Color :
- Green
- Packaging :
- Bulk
- Mating Contact Pitch :
- 0.108 inch
- Features :
- --
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Current Rating :
- 7.5A
- Pbfree Code :
- No
- Connector Style :
- D-Sub
- Shell Size :
- 2/A
- Material Flammability Rating :
- UL94 V-0
- Mixed Contacts :
- No
- HTS Code :
- 8536.69.40.30
- Empty Shell :
- No
- Series :
- *
- RoHS Status :
- Non-RoHS Compliant
- Contact Material :
- COPPER ALLOY
- Orientation :
- Straight
- Factory Lead Time :
- 12 Weeks
- Mounting Style :
- Wire
- MIL Conformance :
- yes
- Gender :
- Male
- RoHS :
- N
- Body Breadth :
- 0.494 inch
- Contact Plating :
- Gold
- Dielectric Material :
- Polycyclohexylenedimethylene Terephthalate (PCT)
- Manufacturer :
- ITT Cannon
- Contact Gender :
- Pin (Male)
- Voltage Rating :
- --
- Operating Temperature :
- -55°C ~ 150°C
- Contact Resistance :
- 55mOhm
- Rated Current (Signal) :
- 5A
- Body Depth :
- 0.187 inch
- Contact Style :
- RND PIN-SKT
- Flange Feature :
- Housing/Shell (Unthreaded)
- Mount :
- Cable, Panel
- Termination :
- Crimp
- Length :
- 39.14mm
- Wire Size (Min) :
- 30 AWG
- Option :
- GENERAL PURPOSE
- Max Operating Temperature :
- 150°C
- Housing Material :
- Thermoplastic
- Contact Finish Thickness :
- 50.0µin (1.27µm)
- Contact Type :
- Signal
- Mounting Angle :
- Straight
- DIN Conformance :
- No
- Filter Feature :
- No
- Contact Finish :
- Gold
- Contact Design :
- PREASSEM CONN
- Shell Plating :
- Cadmium
- Plating Thickness :
- 50μin
- ECCN Code :
- EAR99
- Body Material :
- Steel
- Number of Contacts :
- 15
- Mounting Type :
- Panel Mount
- Connector Type :
- D-Sub, Plug, Signal
- Number of Rows :
- 2
- Wire Size (Max) :
- 18 AWG
- Product Status :
- Active
- Min Operating Temperature :
- -55°C
- Contact Pattern :
- STAGGERED
- Backset Spacing :
- --
- Type :
- PLUG
- Brand :
- ITT Cannon
- Contact Form :
- Machined
- Published :
- 2007
- REACH SVHC :
- Unknown
- Color :
- Black
- Shell Material, Finish :
- Steel, Yellow Chromate Plated Zinc
- Ingress Protection :
- --
- Termination Style :
- Crimp
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Package :
- Bulk
- Product Type :
- D-Sub Connectors - Standard Density
- Shell Finish :
- Chromate
- Datasheets
- DAMAM-15P
* Series D-Sub D-Sub, Plug, Signal 15-Position Male Signal Crimp 2 (DA, A) Panel Mount COPPER ALLOY Gold Steel, Yellow Chromate Plated Zinc
DAMAM15P Overview
The connector type D-Sub, Plug, Signal refers to the connector type.The device's mounting type is Panel Mount.In order to package the product, a Bulk case is used.It belongs to the * Series of products.It's best to use it when the temperature is below 150°C.This device must operate at a minimum temperature of -55°C.The part is mounted by Cable, Panel.The device runs in -55°C ~ 150°C Operating Temperature.
DAMAM15P Features
* series
DAMAM15P Applications
There are a lot of ITT Cannon, LLC
DAMAM15P D-Sub Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
