DAC43608RTER

Manufacturer :

Texas Instruments

Product Category :

Digital to Analog Converters (DAC)

Pbfree Code :

yes

Settling Time :

10μs (Typ)

Analog Output Voltage-Max :

5.5V

Moisture Sensitivity Level (MSL) :

2 (1 Year)

Surface Mount :

yes

Mounting Type :

Surface Mount

Base Part Number :

DAC43608

Supply Voltage :

2.7V

Number of Functions :

1

Voltage - Supply, Digital :

1.8V~5.5V

RoHS Status :

ROHS3 Compliant

Linearity Error-Max (EL) :

0.3906%

Data Interface :

I2C

Input Bit Code :

BINARY

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Terminal Pitch :

0.5mm

Input Format :

PARALLEL, WORD

Differential Output :

No

Terminal Position :

QUAD

JESD-609 Code :

e4

Width :

3mm

JESD-30 Code :

S-PQCC-N16

Number of Bits :

8

Voltage - Supply, Analog :

1.8V~5.5V

Number of Terminations :

16

Reference Type :

External

Output Type :

Voltage - Buffered

Factory Lead Time :

6 Weeks

Operating Temperature :

-40°C~125°C

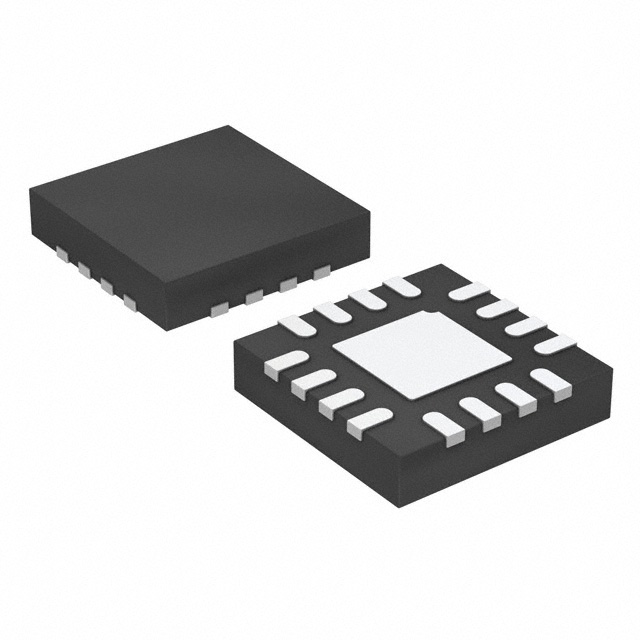

Package / Case :

16-WFQFN Exposed Pad

Packaging :

Tape and Reel (TR)

Length :

3mm

Converter Type :

D/A CONVERTER
