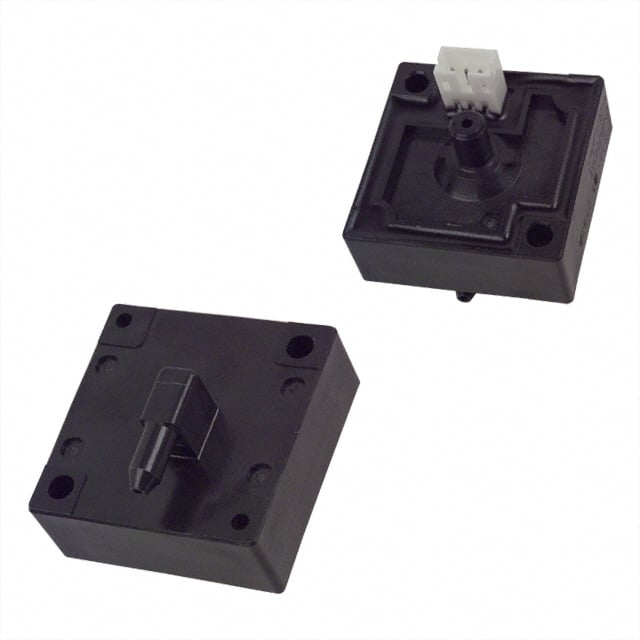

D8M-R1
Or copy the link below:
- Mfr.Part #
- D8M-R1
- Manufacturer
- Omron Electronic Components
- Package / Case
- Module
- Datasheet
- Download
- Description
- SENSOR PRESSURE FREQ OUT 0-196PA
- Stock
- 24,163
- In Stock ：
- 24,163
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Omron Electronic Components
- Product Category :
- Pressure Sensors, Transducers
- Pressure Range-Max :
- 0.028 Psi
- Voltage - Rated DC :
- 5.5V
- Reach Compliance Code :
- Unknown
- Length :
- 30mm
- Port Size :
- Male - 0.16 4.06mm Tube
- Published :
- 2002
- Sensors/Transducers Type :
- PRESSURE SENSOR,CAPACITIVE
- Operating Pressure :
- 0.03PSI (0.2kPa)
- Nominal Supply Current :
- 10mA
- Applications :
- Board Mount
- Package / Case :
- Module
- Voltage - Rated :
- 5.5V
- Width :
- 30mm
- Accuracy :
- ±2%
- Output Type :
- Frequency
- Maximum Pressure :
- 0.44PSI (3kPa)
- Pressure Sensing Mode :
- Gage
- Linearity :
- 2 %
- Surface Mount :
- No
- Mounting Feature :
- Panel Mount
- REACH SVHC :
- No SVHC
- Port Style :
- Barbless
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Height :
- 18.8mm
- Voltage - Supply :
- 4.2V~5.5V
- Max Pressure :
- 0.44 PSI
- Housing :
- Plastic
- Operating Supply Voltage :
- 5V
- Pressure Type :
- Vented Gauge
- RoHS Status :
- RoHS Compliant
- Number of Pins :
- 3
- Lead Free :
- Lead Free
- Termination Style :
- CABLE
- Factory Lead Time :
- 9 Weeks
- Operating Temperature :
- -20°C~70°C
- Datasheets
- D8M-R1
D8M-R1 Documents
Vented Gauge Pressure Sensor Frequency -20°C~70°C 0.03PSI (0.2kPa) Barbless ±2% 4.2V~5.5V
D8M-R1 Overview
For convenience, this transducer is included in the Module package. The temperature of the transducers should be set to -20°C~70°C to ensure reliable performance. The transducers can operate well with a supply voltage of 4.2V~5.5V. For the transducers to work properly, 3 pins must be connected in order to make it work. The maximum pressure range set by this transducer is 0.028 Psi. The transducers can have a normal operation with nominal supply current of 10mA. DC voltage should be 5.5V so that the transducers can continuously operate at the rated ambient temperature.
D8M-R1 Features
Moisture Sensitivity Level: Not Applicable
Package / Case: Module
Operating Temperature: -20°C~70°C
3 Pins
Operating Pressure: 0.03PSI (0.2kPa)
Operating Supply Voltage: 5V
D8M-R1 Applications
There are a lot of Omron Electronics Inc-EMC Div
D8M-R1 Transducers applications.
- General Purpose
- Process Control
- Altitude Control of Drones and Flying Toys
- Mobile Phones
- Virtual Reality and Gaming Equipment
- Indoor/Outdoor Navigation (dead-reckoning, floor/elevator/step detection)
- Vertical velocity monitoring
- Leisure, Sports, and Fitness Activity Identification
- Weather Forecasting
- Hydrogen Storage
