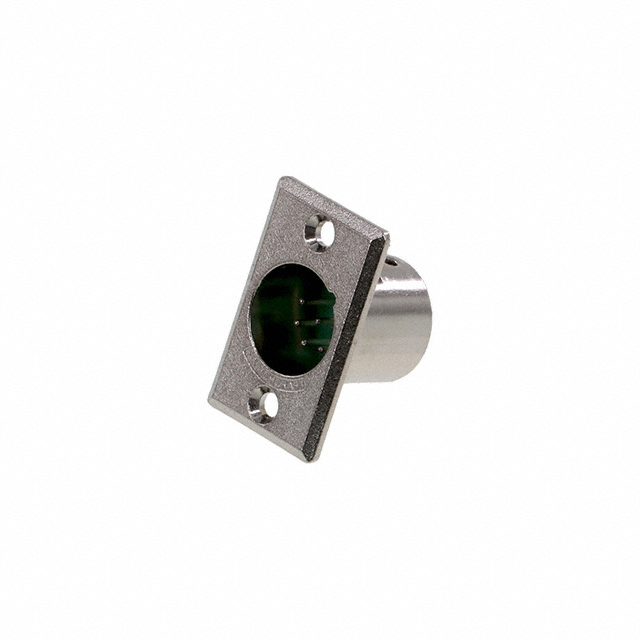

D7M
Or copy the link below:
- Mfr.Part #
- D7M
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT MALE XLR 7P SOLDER CUP
- Stock
- 26
- In Stock ：
- 26
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Circular Connector Assemblies
- Depth :
- 36.9mm
- Feature :
- Ground
- Mounting Feature :
- Flange
- Shell Material :
- Zinc
- Option :
- GENERAL PURPOSE
- Applications :
- Audio, Instrumentation
- Voltage - Rated DC :
- 125V
- Length :
- 27mm
- Additional Feature :
- POLARIZED
- Number of Positions :
- 7
- RoHS Status :
- ROHS3 Compliant
- Number of Ports :
- 1
- Gender :
- Male
- Contact Material :
- Brass
- DIN Conformance :
- No
- Packaging :
- Bulk
- Orientation :
- Keyed
- Contact Finish - Mating :
- Silver
- Number of Poles :
- 7
- Connector Type :
- Receptacle, Male Pins
- Insert Material :
- Polyester
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Mount :
- Flanges, Panel
- MIL Conformance :
- No
- IEC Conformance :
- No
- Termination :
- Solder Cup
- Mounting Type :
- Panel Mount
- Insulation Material :
- Plastic
- Published :
- 1998
- Lead Free :
- Lead Free
- Current Rating :
- 5A
- Factory Lead Time :
- 12 Weeks
- Shell Size - Insert :
- XLR
- Voltage - Rated :
- 125VAC
- Shell Finish :
- Nickel
- Series :
- Q-G® D
- Fastening Type :
- Latch Lock
- Datasheets
- D7M
Receptacle, Male Pins Zinc Panel Mount 7 Positions Solder Cup Silver Nickel Bulk Keyed Latch Lock
D7M Overview
The product is packaged in Receptacle, Male Pins.This device is mounted in the Panel Mount position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Q-G® D Series.To name a few, there is also POLARIZED.There are a number of advantages to its Ground feature.Part Flanges, Panel is mounted to the part.
D7M Features
Q-G® D series
D7M Applications
There are a lot of Switchcraft Inc.
D7M Circular Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
