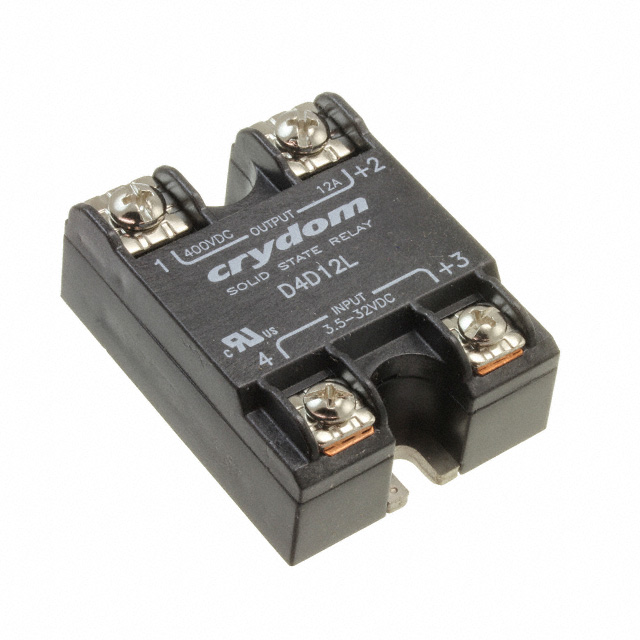

D4D12L

Manufacturer :

Sensata Technologies – Crydom

Product Category :

Solid State Relays

Circuit :

SPST-NO (1 Form A)

Lead Free :

Lead Free

Mounting Type :

Chassis Mount

Radiation Hardening :

No

Termination :

Screw

On-State Resistance (Max) :

350mOhms

Series :

1-DCL

Relay Type :

Relay

Max Operating Temperature :

80°C

Max Output Current :

12A

Factory Lead Time :

6 Weeks

Voltage - Load :

0V~400V

Packaging :

Bulk

Operating Supply Voltage :

400V

Max Supply Voltage :

400V

Min Operating Temperature :

-40°C

Min Supply Voltage :

0V

Max Output Voltage :

400V

Package / Case :

Hockey Puck

Number of Pins :

4

Current Rating :

12A

Published :

2011

Resistance :

350mOhm

Moisture Sensitivity Level (MSL) :

Not Applicable

Max Input Current :

10.6mA

RoHS Status :

RoHS Compliant

Throw Configuration :

SPST

Load Current :

12A

REACH SVHC :

No SVHC

Isolation Voltage :

2.5kV

Termination Style :

Screw Terminal

Output Type :

DC

Mount :

Chassis Mount, Panel, Screw

Input Current :

10mA

Voltage - Input :

3.5V~32VDC

Output Current :

12A
