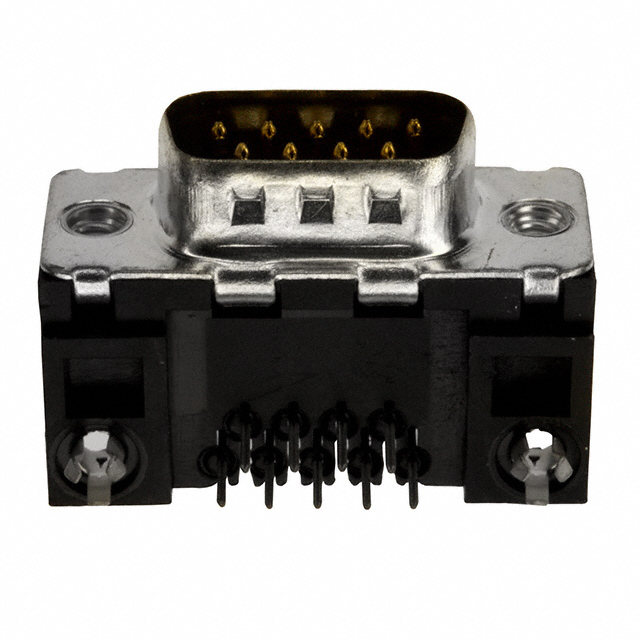

D09P13A4GL00LF
Or copy the link below:
- Mfr.Part #
- D09P13A4GL00LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 9POS R/A SLDR
- Stock
- 1,887
- In Stock ：
- 1,887
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- D-Sub Connector Assemblies
- Connector Style :
- D-Sub
- Voltage - Rated :
- 300V
- Pitch :
- 2.74mm
- Min Operating Temperature :
- -55°C
- Width :
- 13.48mm
- Series :
- Delta D
- Number of Positions :
- 9
- Number of Terminations :
- 9
- Feature :
- Board Lock, Grounding Indents, Mounting Brackets
- Housing Color :
- Black
- Lead Free :
- Lead Free
- Current Rating :
- 5A
- Number of Contacts :
- 9
- Radiation Hardening :
- No
- Number of Rows :
- 2
- Backset Spacing :
- 0.409 (10.40mm)
- RoHS Status :
- RoHS Compliant
- Current Rating (Amps) :
- 5A
- Dielectric Material :
- Polybutylene Terephthalate (PBT)
- Contact Material :
- Brass
- Contact Finish :
- Gold
- Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Depth :
- 20.55mm
- Connector Type :
- Plug, Male Pins
- Gender :
- Male
- Contact Finish Thickness :
- Flash
- Color :
- Black
- Orientation :
- RIGHT ANGLE
- Shell Size, Connector Layout :
- 1 DE E
- Shell Material, Finish :
- Steel, Tin Plated
- Flange Feature :
- Housing/Shell (M3)
- Contact Type :
- Signal
- Plating :
- Tin
- Length :
- 30.81mm
- Operating Temperature :
- -55°C~125°C
- Factory Lead Time :
- 10 Weeks
- Mount :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Supply Voltage (AC) :
- 300V
- Contact Plating :
- Gold
- Packaging :
- Tray
- Max Voltage Rating (AC) :
- 300V
- Material Flammability Rating :
- UL94 V-0
- Number of Ports :
- 1
- Mounting Type :
- Through Hole, Right Angle
- Housing Material :
- Polybutylene
- Max Operating Temperature :
- 125°C
- Datasheets
- D09P13A4GL00LF
D09P13A4GL00LF Documents
Delta D Series D-Sub Plug, Male Pins 9-Position Male Signal Solder 1 DE E Through Hole, Right Angle Brass Gold Steel, Tin Plated
D09P13A4GL00LF Overview
The connector type Plug, Male Pins refers to the connector type.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Tray case is used.It belongs to the Delta D Series of products.It's best to use it when the temperature is below 125°C.This device must operate at a minimum temperature of -55°C.It features 1 ports for managing a variety of tasks.Its Board Lock, Grounding Indents, Mounting Brackets feature renders it more powerful in many ways.The part is mounted by Through Hole.The chip has 9 terminations.The device runs in -55°C~125°C Operating Temperature.
D09P13A4GL00LF Features
9 basic kinds of terminations
Delta D series
D09P13A4GL00LF Applications
There are a lot of Amphenol ICC (FCI)
D09P13A4GL00LF D-Sub Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
