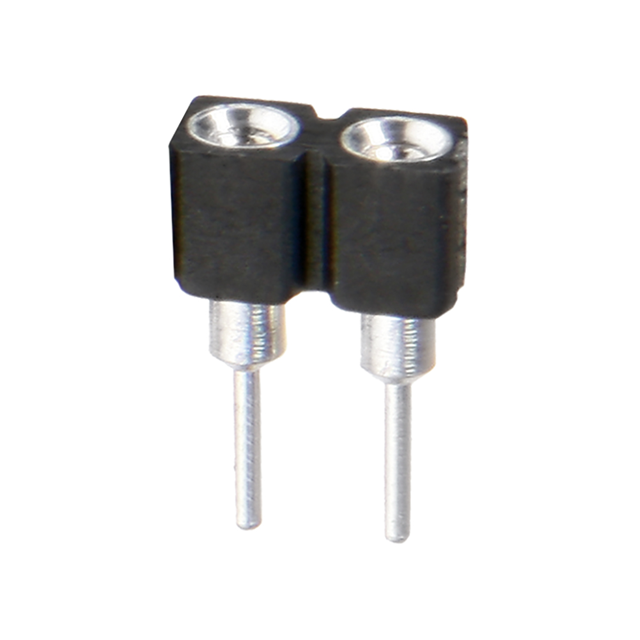

D01-9970242

Manufacturer :

Harwin

Product Category :

IC Sockets

Termination :

Solder

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

17 Weeks

Orientation :

Straight

Contact Finish Thickness - Post :

196.9μin 5.00μm

Current Rating :

1A

Max Voltage Rating (DC) :

150V

Lead Length :

3.175mm

Contact Plating :

Gold, Tin

Contact Finish - Post :

Tin

Operating Temperature :

-55°C~125°C

Max Voltage Rating (AC) :

100V

Contact Material :

Copper

Number of Contacts :

2

Housing Color :

Black

Packaging :

Bulk

Max Current Rating :

1A

Contact Finish - Mating :

Gold

Contact Resistance :

10MOhm

Length :

5.08mm

Number of Positions or Pins (Grid) :

2 (1 x 2)

Material Flammability Rating :

UL94 V-0

Termination Post Length :

0.125 3.18mm

Number of Rows :

1

Contact Finish Thickness - Mating :

Flash

Published :

2013

Pitch - Mating :

0.100 2.54mm

Pitch - Post :

0.100 2.54mm

Housing Material :

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

JESD-609 Code :

e4

Type :

SIP

Contact Material - Post :

Brass

HTS Code :

8536.69.40.40

ECCN Code :

EAR99

Additional Feature :

STANDARD: UL 94V-0

Depth :

2.54mm

Series :

D01-997

Mounting Type :

Threaded

Contact Material - Mating :

BERYLLIUM COPPER

Pbfree Code :

yes

Flammability Rating :

UL94 V-0

Number of Positions :

2
