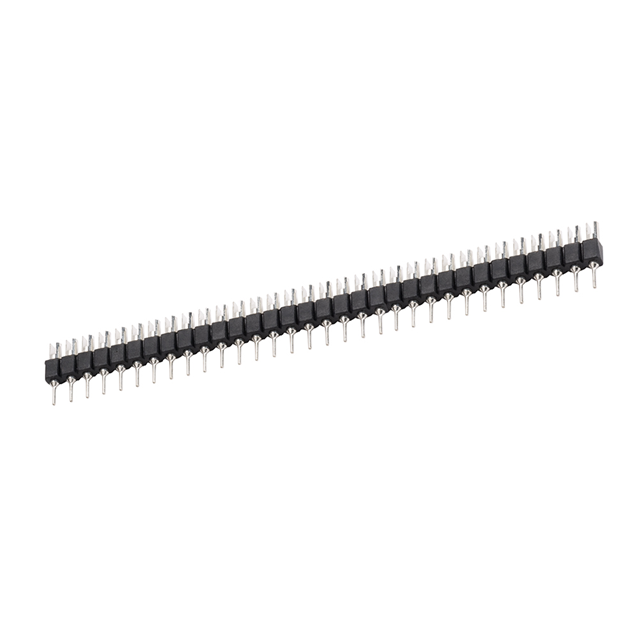

D01-9943246
Or copy the link below:
- Mfr.Part #
- D01-9943246
- Manufacturer
- Harwin
- Package / Case
- SIL
- Datasheet
- Download
- Description
- CONN SIL HDR SLOT 32POS TIN
- Stock
- 38,065
- In Stock ：
- 38,065
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Headers, Specialty Pin
- Mount :
- Through Hole
- Factory Lead Time :
- 17 Weeks
- Contact Material :
- Brass
- Insulation Resistance :
- 100MOhm
- Max Operating Temperature :
- 125°C
- Min Operating Temperature :
- -55°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Depth :
- 2.54mm
- Pitch :
- 0.100 2.54mm
- Contact Finish :
- Tin
- Connector Type :
- SIP, SIL - Header
- Insulation Material :
- Polyamide
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Bulk
- Mounting Type :
- Through Hole
- Orientation :
- Straight
- Flammability Rating :
- UL94 V-0
- Contact Finish Thickness :
- 137.8μin 3.50μm
- Number of Rows :
- 1
- Package / Case :
- SIL
- Radiation Hardening :
- No
- Contact Type :
- Slotted
- ECCN Code :
- EAR99
- Current Rating :
- 1.5A
- JESD-609 Code :
- e3
- Length :
- 81.6mm
- Pbfree Code :
- yes
- Number of Positions :
- 32
- Published :
- 2009
- HTS Code :
- 8536.69.40.40
- Contact Resistance :
- 23mOhm
- Termination :
- Solder
- Housing Material :
- Polyester
- Color :
- Black
- Datasheets
- D01-9943246
