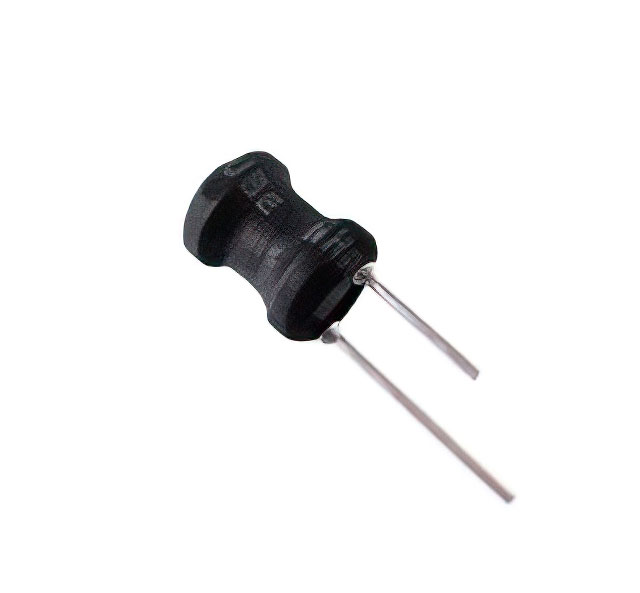

CTRL5480F-3-122K

Manufacturer :

Central Technologies

Product Category :

Fixed Inductors

Voltage - Supply :

8 V ~ 30 V

Maximum Pressure :

--

Output :

4 mA ~ 20 mA

Material - Core :

-

Product Status :

Active

Tolerance :

±10%

Size / Dimension :

0.374 Dia (9.50mm)

Termination Style :

Cable 3

Supplier Device Package :

--

Inductance Frequency - Test :

1 kHz

Ratings :

-

Accuracy :

±0.5%

Shielding :

Unshielded

Package :

Bulk

Package / Case :

Cylinder

Operating Temperature :

-40°C ~ 105°C

Current - Saturation (Isat) :

360mA

Type :

-

Series :

MediaSensor™

Frequency - Self Resonant :

-

Pressure Type :

Vented Gauge

Current Rating (Amps) :

246 mA

DC Resistance (DCR) :

2.4Ohm Max

Features :

Amplified Output, Temperature Compensated

Output Type :

Analog Current

Inductance :

1.2 mH

Port Size :

Female - 1/4 (6.35mm) NPT

Operating Pressure :

300 PSI (2068.43 kPa)

Mounting Type :

Through Hole

Q @ Freq :

-

Height - Seated (Max) :

0.449 (11.40mm)

Port Style :

Threaded
