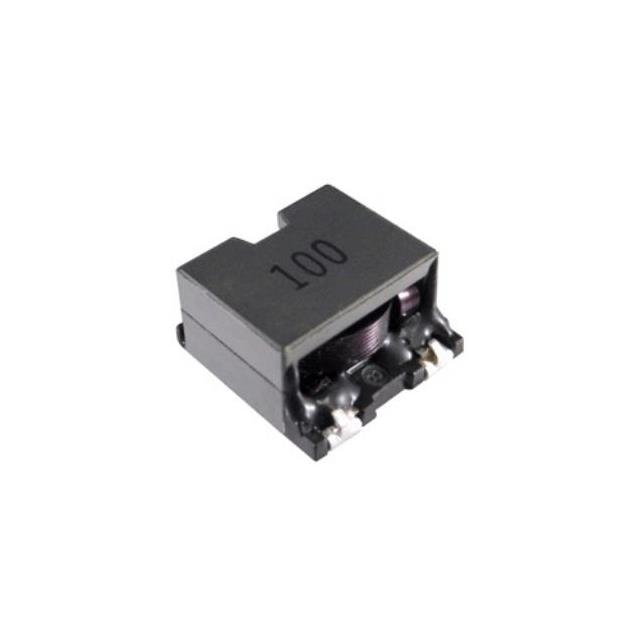

CTCDEP147HF-R70M

Manufacturer :

Central Technologies

Product Category :

Fixed Inductors

HTS Code :

8504.50.80.00

Terminal Shape :

WRAPAROUND

Height - Seated (Max) :

0.319" (8.10mm)

Manufacturer :

Central Technologies

Number of Terminals :

2

Package / Case :

Nonstandard

Frequency - Self Resonant :

-

Shape/Size Description :

RECTANGULAR PACKAGE

Operating Temperature :

-30°C ~ 100°C

Material - Core :

-

Mounting Type :

Surface Mount

Number of Functions :

1

Inductor Type :

GENERAL PURPOSE INDUCTOR

ECCN Code :

EAR99

Inductance-Nom (L) :

0.7 µH

Inductance Frequency - Test :

100 kHz

Current Rating (Amps) :

20 A

DC Resistance :

0.00265 Ω

Features :

-

Inductor Application :

POWER INDUCTOR

Current - Saturation (Isat) :

46.4A

Inductance :

700 nH

Type :

Wirewound

Package :

Tape and Reel (TR)

DC Resistance (DCR) :

2.65mOhm Max

Reach Compliance Code :

Compliant

Test Frequency :

0.1 MHz

Surface Mount :

yes

Ratings :

-

Size / Dimension :

0.591" L x 0.587" W (15.00mm x 14.90mm)

Rated Current-Max :

20 A

Shielded :

yes

Tolerance :

±20%

Product Status :

Active

Q @ Freq :

-

Supplier Device Package :

-

Shielding :

Shielded

Series :

CTCDEP147HF
