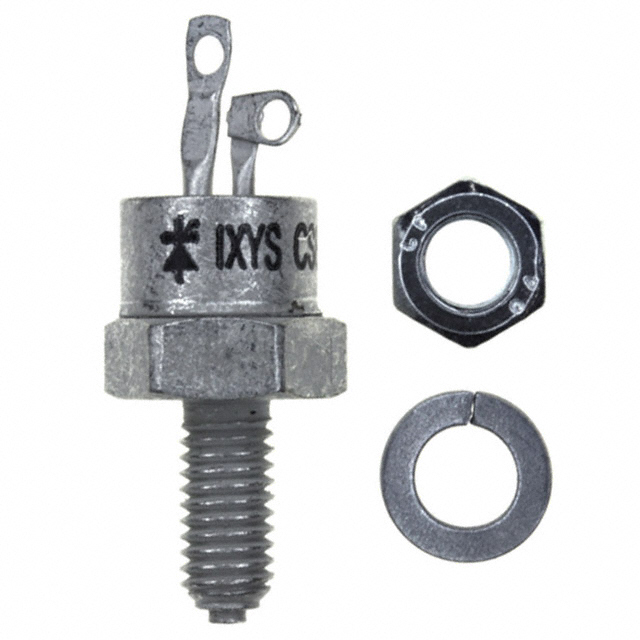

CS8-12IO2

Manufacturer :

Littelfuse

Product Category :

Thyristors - SCRs

Holding Current-Max :

80 mA

Voltage - On State (Vtm) (Max) :

1.6V

Terminal Form :

Solder Lug

Repetitive Peak Reverse Voltage :

1200 V

Length :

12.69mm

Trigger Device Type :

SCR

JESD-609 Code :

e3

Moisture Sensitivity Level (MSL) :

Not Applicable

Max Operating Temperature :

125 °C

Configuration :

Single

HTS Code :

8541.30.00.80

Operating Temperature :

-40°C~125°C

Surface Mount :

No

Pin Count :

2

Package :

Bulk

Terminal Position :

UPPER

Voltage - Gate Trigger (Vgt) (Max) :

2.5V

Hold Current :

80mA

Packaging :

Bulk

Case Connection :

ANODE

Series :

--

RoHS :

Compliant

Width :

11mm

Voltage - Off State :

1.2kV

RMS On-state Current-Max :

25 A

Published :

2000

Current Rating :

10A

Height :

31mm

JESD-30 Code :

O-MUPM-D2

Number of Terminations :

2

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Manufacturer :

IXYS Corporation

Current - Non Rep. Surge 50, 60Hz (Itsm) :

250A 270A

Current - On State (It (RMS)) (Max) :

25A

Current - On State (It (AV)) (Max) :

16A

RMS Current (Irms) :

25A

JEDEC-95 Code :

TO-64

Lead Free :

Lead Free

Package / Case :

TO-208AB, TO-64-3, Stud

Number of Pins :

3

Voltage - Rated DC :

1.2kV

Max Repetitive Reverse Voltage (Vrrm) :

1.2kV

Package Shape :

Round

Number of Elements :

1

REACH SVHC :

No SVHC

Non-Repetitive Pk On-state Cur :

250 A

Voltage Rating (DC) :

1.2 kV

Base Product Number :

CS8

Min Operating Temperature :

-40 °C

SCR Type :

Standard Recovery

Circuit Commutated Turn-off Time-Nom :

60 μs

Terminal Finish :

Tin (Sn)

Current - Off State (Max) :

3mA

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Product Status :

Obsolete

Number of Terminals :

2

DC Gate Trigger Voltage-Max :

2.5 V

Current - Hold (Ih) (Max) :

80mA

Mounting Type :

Chassis, Stud Mount

Supplier Device Package :

TO-64

Current - Gate Trigger (Igt) (Max) :

30mA

Qualification Status :

Not Qualified

Mount :

Chassis, Stud

Critical Rate of Rise of Off-State Voltage-Min :

1000V/us

RoHS Status :

RoHS Compliant

Repetitive Peak Off-state Voltage :

1200V

DC Gate Trigger Current-Max :

30 mA

Reach Compliance Code :

Compliant
