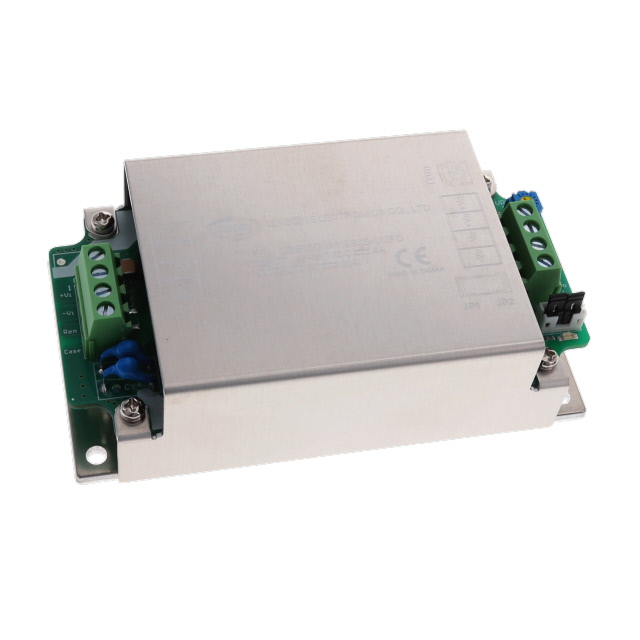

CQB100W-110S05-CMFD

Manufacturer :

Cincon

Product Category :

RoHS :

Details

Brand :

Cincon

Manufacturer :

Cincon

Product Status :

Active

Mounting Style :

Through Hole

Product Type :

Isolated DC-DC Converters

Voltage - Output 3 :

-

Minimum Operating Temperature :

- 40 C

Width :

63.4 mm

Voltage - Input (Max) :

160V

Power (Watts) :

100W

Size / Dimension :

4.60" L x 2.49" W x 1.35" H (116.8mm x 63.4mm x 34.2mm)

Efficiency :

89%

Product Category :

Isolated DC/DC Converters - Through Hole

Voltage - Isolation :

3 kV

Operating Temperature :

-40°C ~ 100°C

Product :

Isolated

Current - Output (Max) :

20A

Approval Agency :

CE

Isolation Voltage :

3 kV

Package :

Box

Input Voltage :

43 V to 160 V

Voltage - Input (Min) :

43V

Subcategory :

DC-DC Converter

Mounting Type :

Chassis Mount

Height :

34.2 mm

Standard Number :

50155; 60950-1; 62368-1

Output Power :

100 W

Type :

Enclosed

Applications :

ITE (Commercial), Railway

Voltage - Output 4 :

-

Voltage - Output 2 :

-

Base Product Number :

CQB100

Length :

116.8 mm

Voltage - Output 1 :

5V

Number of Outputs :

1

Maximum Operating Temperature :

+ 100 C

Series :

CQB100W-110S (100W)
