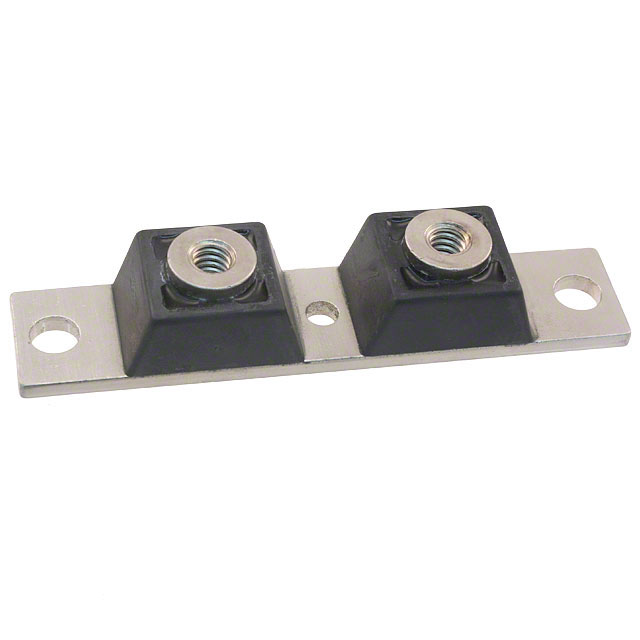

CPT50145

Manufacturer :

Microsemi

Product Category :

Diodes - Rectifiers - Arrays

Number of Pins :

3

Application :

Power

Forward Voltage :

550mV

ECCN Code :

EAR99

Forward Current :

500A

JESD-30 Code :

R-XUFM-X2

Current - Reverse Leakage @ Vr :

12mA @ 45V

Peak Non-Repetitive Surge Current :

5kA

Peak Reverse Current :

12mA

Min Operating Temperature :

-55°C

Max Operating Temperature :

150°C

Terminal Position :

UPPER

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Packaging :

Bulk

Max Repetitive Reverse Voltage (Vrrm) :

45V

Terminal Form :

UNSPECIFIED

RoHS Status :

RoHS Compliant

Voltage - Forward (Vf) (Max) @ If :

550mV @ 250A

Pin Count :

2

Diode Element Material :

SILICON

Number of Terminations :

2

Mount :

Chassis Mount, Screw

Radiation Hardening :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Chassis Mount

Number of Elements :

2

Average Rectified Current :

250A

Diode Configuration :

1 Pair Common Cathode

Diode Type :

Schottky

Pbfree Code :

No

Package / Case :

MD3CC

Element Configuration :

Common Cathode

Number of Phases :

1

Max Reverse Voltage (DC) :

45V

HTS Code :

8541.10.00.80

Contact Plating :

Nickel
