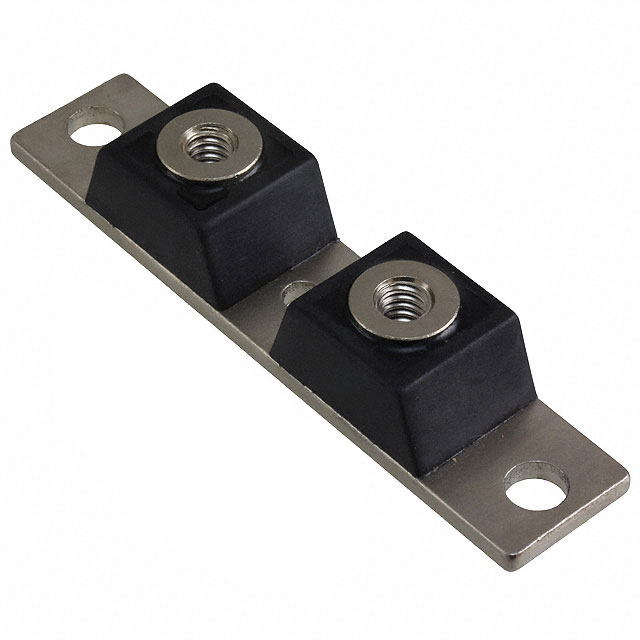

CPT400100D

Manufacturer :

Microsemi

Product Category :

Diodes - Rectifiers - Arrays

Packaging :

Bulk

Diode Element Material :

SILICON

Current - Reverse Leakage @ Vr :

5mA @ 100V

Additional Feature :

REVERSE ENERGY TESTED

Mount :

Chassis Mount, Screw

Mounting Type :

Chassis Mount

RoHS Status :

RoHS Compliant

Element Configuration :

Common Cathode

Max Reverse Voltage (DC) :

100V

Diode Type :

Schottky

Max Operating Temperature :

175°C

Max Repetitive Reverse Voltage (Vrrm) :

100V

JESD-30 Code :

R-XUFM-X2

Average Rectified Current :

200A

Number of Phases :

1

Peak Non-Repetitive Surge Current :

3kA

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Min Operating Temperature :

-55°C

Application :

GENERAL PURPOSE

Voltage - Forward (Vf) (Max) @ If :

890mV @ 200A

Number of Pins :

3

ECCN Code :

EAR99

Package / Case :

TO-244AB

Forward Current :

400A

HTS Code :

8541.10.00.80

Terminal Form :

UNSPECIFIED

Forward Voltage :

890mV

Peak Reverse Current :

5mA

Diode Configuration :

1 Pair Series Connection

Radiation Hardening :

No

Published :

2014

Terminal Position :

UPPER

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Number of Terminations :

2

Number of Elements :

2
