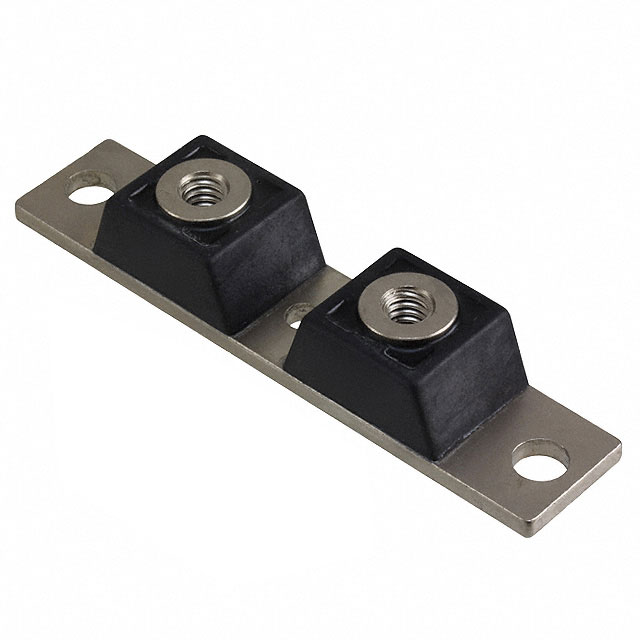

CPT12050

Manufacturer :

Microsemi

Product Category :

Diodes - Rectifiers - Arrays

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Application :

Power

Voltage - Forward (Vf) (Max) @ If :

800mV @ 120A

Peak Non-Repetitive Surge Current :

1kA

Diode Element Material :

SILICON

Forward Voltage :

800mV

Average Rectified Current :

60A

Forward Current :

120A

Terminal Form :

UNSPECIFIED

HTS Code :

8541.10.00.80

Number of Phases :

1

Max Operating Temperature :

175°C

Mounting Type :

Chassis Mount

JESD-30 Code :

R-XUFM-X2

Number of Terminations :

2

ECCN Code :

EAR99

Min Operating Temperature :

-55°C

RoHS Status :

RoHS Compliant

Packaging :

Bulk

Max Reverse Voltage (DC) :

50V

Mount :

Chassis Mount, Screw

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Terminal Position :

UPPER

Element Configuration :

Common Cathode

Number of Elements :

2

Published :

2014

Diode Configuration :

1 Pair Common Cathode

Radiation Hardening :

No

Diode Type :

Schottky

Peak Reverse Current :

3mA

Pin Count :

2

Number of Pins :

3

Max Repetitive Reverse Voltage (Vrrm) :

50V

Current - Reverse Leakage @ Vr :

3mA @ 50V

Package / Case :

TO-244AB
