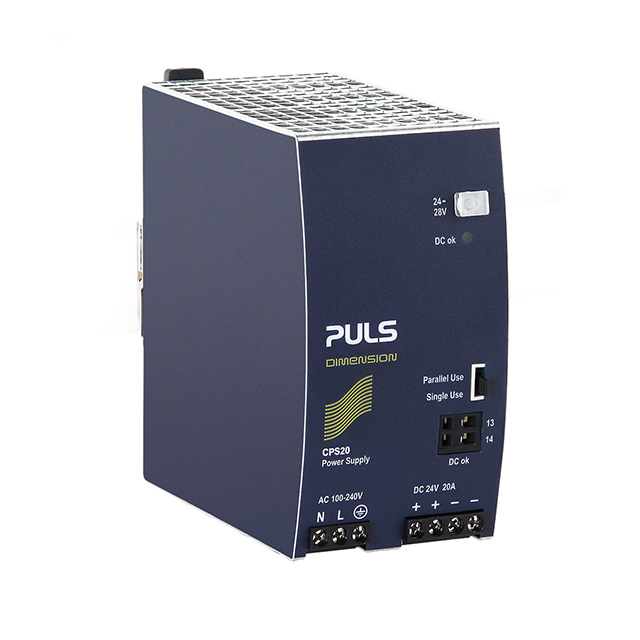

CPS20.241-C1

Manufacturer :

PULS

Product Category :

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Trim/Adjustable Output :

yes

Current - Output (Max) :

20A

Reach Compliance Code :

not_compliant

Additional Feature :

ALSO AVAIALBE WITH DIFFE MOUNITING AND DIFF MAX TEMP

Number of Terminations :

10

Number of Outputs :

1

Terminal Form :

UNSPECIFIED

Power (Watts) :

480W

Efficiency :

94%

Voltage - Output 1 :

24V

Series :

DIMENSION C (480W)

Input Voltage-Nom :

100V

Approval Agency :

CB, cCSAus, CE, cULus, cURus

Mounting Type :

DIN Rail

Factory Lead Time :

2 Weeks

Pbfree Code :

yes

Voltage - Input :

100V~240VAC

Size / Dimension :

5.00Lx2.56W x 4.88 H 127.0mmx65.0mmx124.0mm

Surface Mount :

No

Voltage - Isolation :

3kV

Feature :

Adjustable Output, Conformal Coating, DC Input Capable, Load Sharing, PFC, Universal Input

Terminal Position :

UNSPECIFIED

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

RoHS Status :

RoHS Compliant

Operating Temperature :

-25°C~70°C With Derating

Output Voltage :

24V

Total Power Output-Max :

576W

Number of Functions :

1

Applications :

Hazardous Locations, ITE (Commercial)

Moisture Sensitivity Level (MSL) :

Not Applicable

Type :

Enclosed, Conformal Coated
