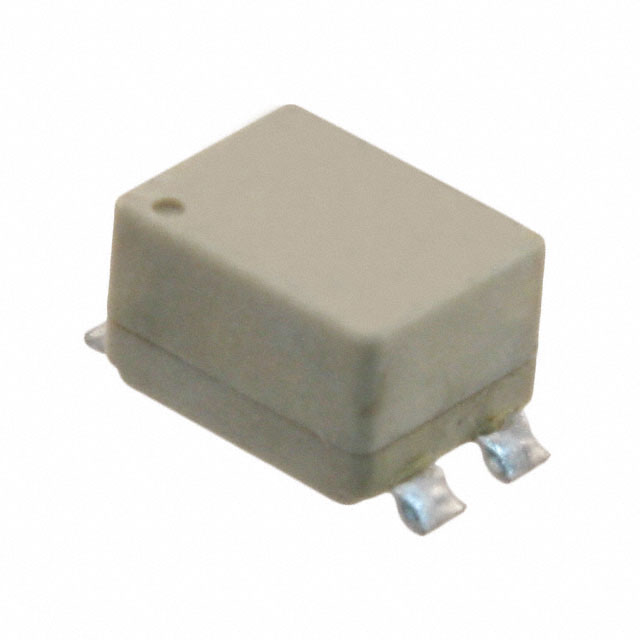

CPFC74NP-PS10H2A15
Or copy the link below:
- Mfr.Part #
- CPFC74NP-PS10H2A15
- Manufacturer
- Sumida Corporation
- Package / Case
- Vertical, 4 Gull Wing
- Datasheet
- Download
- Description
- CMC 1.5A 2LN 700 OHM SMD
- Stock
- 5,000
- In Stock ：
- 5,000
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sumida Corporation
- Product Category :
- Common Mode Chokes
- Depth :
- 5.7mm
- Insulation Resistance-Min :
- 10MOhm
- Height :
- 5.08mm
- Width :
- 5.5mm
- Impedance :
- 700Ohm
- Impedance @ Frequency :
- 700Ohm @ 100MHz
- Pbfree Code :
- yes
- Published :
- 2006
- Current Rating :
- 1.5A
- Factory Lead Time :
- 17 Weeks
- Packaging :
- Tape and Reel (TR)
- Reach Compliance Code :
- Unknown
- RoHS Status :
- ROHS3 Compliant
- Number of Functions :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max DC Current :
- 1.5A
- Mount :
- Surface Mount
- Size / Dimension :
- 0.374Lx0.224W 9.50mmx5.70mm
- Series :
- CPFC
- Termination :
- SMD/SMT
- ECCN Code :
- EAR99
- Shielding :
- Shielded
- Package / Case :
- Vertical, 4 Gull Wing
- Test Frequency :
- 100MHz
- Mounting Type :
- Surface Mount
- DC Resistance (DCR) (Max) :
- 120mOhm Typ
- Lead Free :
- Lead Free
- HTS Code :
- 8504.50.80.00
- Number of Lines :
- 2
- Filter Type :
- Power Line
- Datasheets
- CPFC74NP-PS10H2A15
CPFC74NP-PS10H2A15 datasheet pdf and Common Mode Chokes product details from Sumida America Components Inc. stock available at
