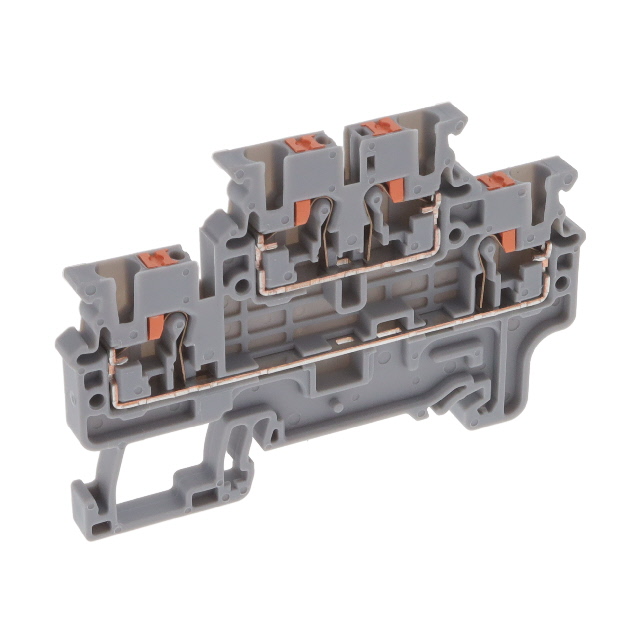

CPDL2.5

Manufacturer :

Altech Corporation

Product Category :

Din Rail, Channel

Number of Positions :

4 Position

Terminal - Width :

5.0mm

Length :

72.7 mm

Mounting Style :

DIN Rail

Wire Gauge or Range - AWG :

12-24 AWG

Stripping Length :

10mm

Voltage - IEC :

1000V

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Color :

White

Number of Levels :

2

Voltage Rating :

600 V, 1000 V

Connection Method :

Push-In

Current - IEC :

24 A

Material Flammability Rating :

-

Package :

Box

Disconnect Type :

-

Type :

Double Level Termination Block

Width :

5 mm

Current - UL :

20 A

Wire Gauge or Range - mm² :

0.2-2.5mm²

Fuse Type :

-

Series :

CP

Termination Style :

Push In, Spring

Features :

-

Voltage - UL :

600V

Product Status :

Active

Current Rating :

+/- 20 A, +/- 24 A

Housing Material :

Polyamide (PA)
