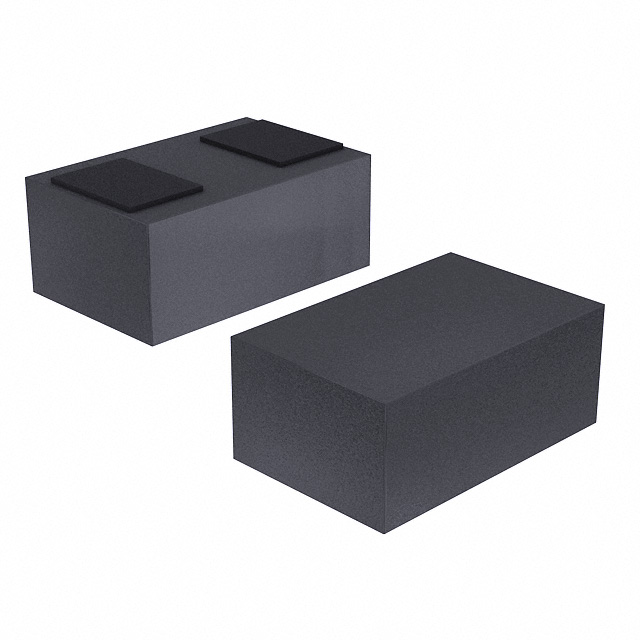

CPDER12V-HF

Manufacturer :

Comchip Technology

Product Category :

Current - Peak Pulse (10/1000μs) :

1A 8/20μs

Breakdown Voltage :

17V

Polarity :

Bidirectional

Voltage - Breakdown (Min) :

13V

Clamping Voltage :

25V

Configuration :

Single

Peak Pulse Power :

25W

Mounting Type :

Surface Mount

Packaging :

Tape and Reel (TR)

RoHS Status :

ROHS3 Compliant

Number of Terminations :

2

Published :

2011

Package / Case :

0503 (1308 Metric)

Capacitance @ Frequency :

12pF @ 1MHz

JESD-30 Code :

R-PBCC-N2

JESD-609 Code :

e4

Time@Peak Reflow Temperature-Max (s) :

30

Operating Temperature (Min) :

-40°C

Power Line Protection :

No

Peak Pulse Current :

1A

Terminal Finish :

Gold (Au)

Bidirectional Channels :

1

Voltage - Reverse Standoff (Typ) :

12V

Diode Element Material :

SILICON

Reverse Standoff Voltage :

12V

Number of Elements :

1

Terminal Position :

BOTTOM

Type :

Zener

Applications :

GENERAL PURPOSE

Peak Reflow Temperature (Cel) :

260

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

Surface Mount

Factory Lead Time :

8 Weeks
