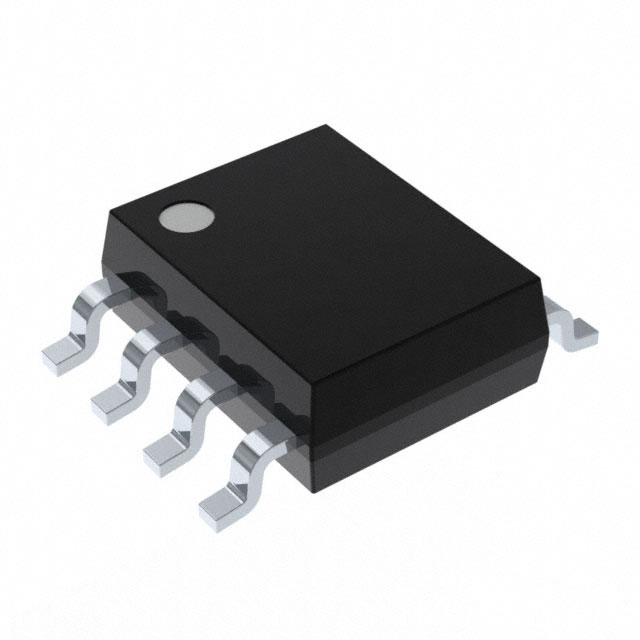

CPC9909NE

Manufacturer :

Littelfuse

Product Category :

LED Drivers

Mounting Type :

Surface Mount

Min Operating Temperature :

-40°C

Output Current :

-

Supplier Device Package :

8-SOIC-EP

Voltage - Supply (Max) :

550V

Published :

2012

Width :

3.9 mm

Number of Channels :

1 Channel

Voltage - Output :

--

Current - Output / Channel :

--

Nominal Supply Current :

2mA

Product Type :

LED Lighting Drivers

Qualification Status :

Not Qualified

Max Operating Temperature :

85°C

Number of Functions :

1

Output Voltage :

7.8V

Length :

4.9 mm

Features :

PWM Dimming

Operating Frequency :

30 kHz to 120 kHz

Mount :

Surface Mount

Dimming :

PWM

Number of Segments :

1

Base Product Number :

CPC9909

For Use With :

High Brightness LEDs

Factory Lead Time :

8 Weeks

Minimum Operating Temperature :

- 40 C

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Package / Case :

8-SOIC (0.154, 3.90mm Width) Exposed Pad

Brand :

IXYS Integrated Circuits

Voltage - Supply (Min) :

8V

Lead Free :

Lead Free

Interface IC Type :

LED DISPLAY DRIVER

Series :

--

Max Supply Voltage :

550V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reach Compliance Code :

Compliant

Subcategory :

Driver ICs

Multiplexed Display Capability :

No

Max Power Dissipation :

2.5W

Internal Switch(s) :

No

Product Status :

Active

HTS Code :

8542.39.00.01

Number of Terminals :

8

Topology :

Step-Down (Buck), Step-Up (Boost)

RoHS Status :

ROHS3 Compliant

Frequency :

30kHz~120kHz

Product :

LED Drivers

Min Supply Voltage :

8V

Input Voltage :

8 V to 550 V

Technology :

BCDMOS

Maximum Operating Temperature :

+ 85 C

Package Shape :

RECTANGULAR

RoHS :

Details

Surface Mount :

yes

Applications :

Signage

JESD-30 Code :

R-PDSO-G8

Product Category :

LED Lighting Drivers

Operating Temperature :

-40°C~85°C TA

Terminal Position :

Dual

Temperature Grade :

Industrial

ECCN Code :

EAR99

Terminal Pitch :

1.27 mm

Package :

Tube

Weight :

540.001716mg

Seated Height-Max :

1.75 mm

Terminal Form :

Gull wing

Packaging :

Tube

Mounting Style :

SMD/SMT

Number of Outputs :

1

Manufacturer :

IXYS

Number of Pins :

8

Type :

AC DC Offline Switcher

Tradename :

Clare

Pin Count :

8
