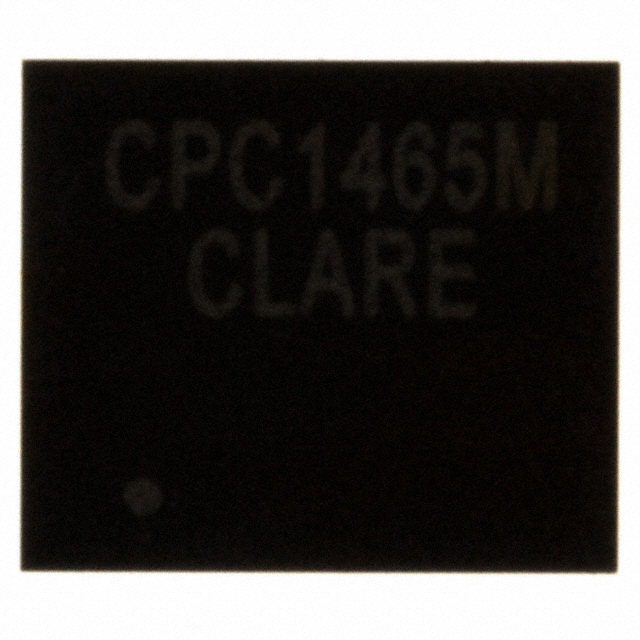

CPC1465MTR

Manufacturer :

Littelfuse

Product Category :

Telecom

Reference Point :

U

Function :

DC Signal Termination

Packaging :

Tape and Reel (TR)

Min Operating Temperature :

-40°C

Power (Watts) :

1W

Terminal Position :

Dual

Terminal Pitch :

0.8 mm

Mount :

Surface Mount

Pin Count :

16

Reach Compliance Code :

Compliant

Number of Pins :

16

Mounting Type :

Surface Mount

Supplier Device Package :

16-MLP (7x6)

Subcategory :

Digital Transmission Interfaces

Mounting Style :

SMD/SMT

Temperature Grade :

Industrial

Maximum Operating Temperature :

+ 85 C

Telecom IC Type :

TELECOM CIRCUIT

Number of Functions :

1

HTS Code :

8542.39.00.01

Number of Circuits :

1

JESD-30 Code :

R-PDSO-N16

Manufacturer :

IXYS Corporation

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Package Shape :

RECTANGULAR

RoHS Status :

ROHS3 Compliant

Operating Supply Current :

1.5μA

Width :

6 mm

Package / Case :

16-VDFN Exposed Pad

Published :

2004

Includes :

Optocoupler

Seated Height-Max :

1 mm

Operating Temperature :

-40°C~85°C

Length :

7 mm

Terminal Form :

NO LEAD

Max Supply Voltage :

39V

Voltage - Supply :

--

Product Status :

Obsolete

Qualification Status :

Not Qualified

Pbfree Code :

yes

Factory Lead Time :

8 Weeks

Number of Terminals :

16

Min Supply Voltage :

30V

Operating Supply Voltage :

35V

Terminal Finish :

Matte Tin (Sn)

Lead Free :

Lead Free

Standard :

ANSI T1.601

Surface Mount :

yes

Minimum Operating Temperature :

- 40 C

Product :

SHDSL/ISDN DC Terminations

Peak Reflow Temperature (Cel) :

260

Interface :

ISDN, SHDSL

Max Power Dissipation :

1W

JESD-609 Code :

e3

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Series :

--

Current - Supply :

--

Max Operating Temperature :

85°C

ISDN Access Rate :

BASIC
