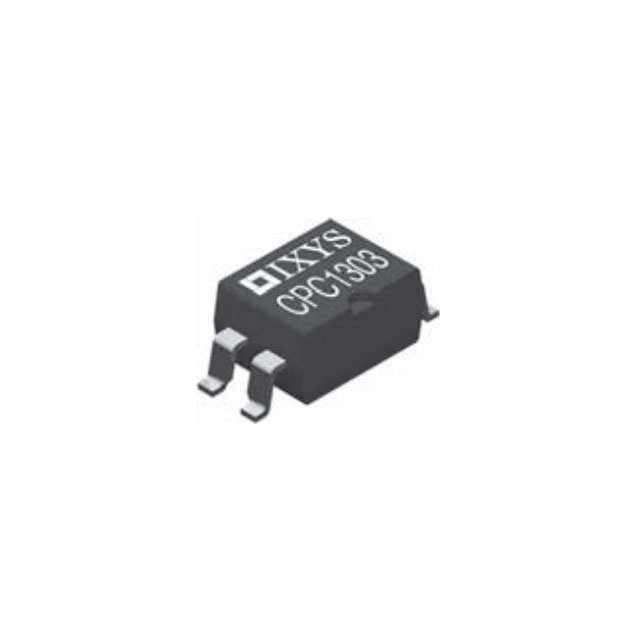

CPC1303GRTR

Manufacturer :

Littelfuse

Product Category :

Optoisolators - Transistor, Photovoltaic Output

Rise / Fall Time (Typ) :

--

Output Type :

Transistor

Output Voltage :

30V

Power Dissipation :

150mW

Lead Free :

Lead Free

Max Operating Temperature :

85°C

Product Category :

Transistor Output Optocouplers

Product Type :

Transistor Output Optocouplers

Optoelectronic Device Type :

TRANSISTOR OUTPUT OPTOCOUPLER

Product Status :

Active

Isolation Voltage :

5000 Vrms

Subcategory :

Optocouplers

Current - DC Forward (If) (Max) :

50mA

Current - Output / Channel :

--

Brand :

IXYS Integrated Circuits

Rise Time :

-

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Dark Current-Max :

500 nA

Collector Emitter Saturation Voltage :

500mV

Configuration :

Single

Reverse Breakdown Voltage :

5V

Supplier Device Package :

4-SMD

Additional Feature :

CMOS COMPATIBLE, HIGH RELIABILITY, UL RECOGNIZED

Isolation Voltage-Max :

5000 V

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Voltage - Forward (Vf) (Typ) :

1.2V

Published :

2012

Vce Saturation (Max) :

500mV

Pbfree Code :

yes

Vf - Forward Voltage :

1.4 V

HTS Code :

8541.40.80.00

Mounting Type :

Surface Mount

Minimum Operating Temperature :

- 40 C

Input Type :

DC

Forward Current :

50mA

JESD-609 Code :

e3

Terminal Finish :

Matte Tin (Sn)

Tradename :

Clare

Package / Case :

4-SMD, Gull Wing

Maximum Operating Temperature :

+ 85 C

Factory Lead Time :

6 Weeks

RoHS :

Details

Mount :

Surface Mount

Series :

--

Reach Compliance Code :

Compliant

Manufacturer :

IXYS

Number of Pins :

4

Mounting Style :

SMD/SMT

Current Transfer Ratio (Max) :

2500% @ 200μA

Turn On / Turn Off Time (Typ) :

2μs, 8μs

Voltage - Output (Max) :

30V

Voltage - Isolation :

5000Vrms

Min Operating Temperature :

-40°C

RoHS Status :

ROHS3 Compliant

Current Transfer Ratio :

200 %

Coll-Emtr Bkdn Voltage-Min :

30 V

Number of Elements :

1

Current Transfer Ratio (Min) :

200% @ 200μA

Collector Emitter Voltage (VCEO) :

500mV

Number of Channels :

1

Packaging :

Tape and Reel (TR)

Base Product Number :

CPC1303

Operating Temperature :

-40°C~85°C

Forward Current-Max :

0.05 A
